Short answer: choose the VorTech MP10, MP40, or MP60 by checking tank-wall thickness first, then matching output and pump count to the aquarium’s length, aquascape resistance, sandbed, and coral flow needs. The MP10 is the compact option for 2.5–50+ gallons, the MP40 covers the broad middle from 50–500+ gallons, and the MP60 is the high-output choice for 120–1,000+ gallons. In long or rock-dense displays, two smaller pumps can provide more balanced circulation than one larger pump, even when their combined headline flow is similar.

MP10 vs. MP40 vs. MP60 at a glance

These ranges overlap substantially, so gallons should not make the decision by themselves. A compact, open aquarium and a long aquarium with dense rockwork can require different circulation strategies despite holding similar volumes. Maximum flow is also not a target that every aquarium must use. Each model includes adjustable output and a QuietDrive controller, allowing intensity to be reduced to suit the display.

Use this four-step sizing process

1. Check tank-wall thickness before comparing output

VorTech pumps use magnetic coupling between an external motor and an internal wet side. That low-profile architecture keeps the electrical components outside the aquarium, but it also makes wall thickness a firm selection constraint.

• MP10: supports glass up to 0.375 inches or 9.5 mm.
• MP40: supports tank walls up to 0.75 inches or 19 mm.
• MP60: supports thicknesses from 0.375 to 1.00 inches, or 9.5–26 mm.

An MP10 should therefore be eliminated from consideration when the intended mounting panel exceeds its 0.375-inch limit, regardless of the aquarium’s gallon rating. The MP60 becomes the relevant model when a large display has a wall thicker than the MP40’s 0.75-inch maximum, provided the wall also falls within the MP60’s stated range. Measure or verify the specific mounting panel rather than assuming every panel on the aquarium has the same specification.

2. Size for aquarium dimensions, not volume alone

The published tank ranges are useful filters, but circulation must travel through the actual display. Length, width, height, and mounting locations determine how much of the broad flow pattern can move through the aquarium before it encounters rockwork or another boundary.

A shorter, open display may be served by one appropriately sized pump operated below maximum. A long display can favor two flow origins, especially when the goal is to move water from both ends or establish a paired gyre pattern. Height and width matter as well: a large cross-section gives the pump more water to move, while placement too close to loose substrate may require reduced intensity.

This is why the 50-gallon boundary does not automatically turn every choice from MP10 to MP40. An aquarium around that overlap could reasonably use one MP40 for greater output and wall-thickness capacity, or two MP10s for circulation from separate locations, assuming the mounting panels are no thicker than 0.375 inches.

3. Account for aquascape resistance

VorTech pumps produce broad, three-dimensional flow rather than a narrow stream. That broad pattern helps distribute movement across a larger section of the display, but rock structures still interrupt circulation. A minimal, open aquascape gives water more continuous paths. Dense islands, tall walls, overhangs, and separated rock structures create more opportunities for sheltered areas.

When rockwork divides the aquarium into distinct zones, adding a second flow source can be more useful than simply increasing the output of one pump. The second pump can begin circulation from another side of the obstruction. By contrast, one larger pump may be the cleaner solution when the aquascape leaves a clear route across the tank and the primary need is greater overall movement.

4. Match intensity and variability to corals and substrate

The source guidance identifies Reef Crest as a high-energy mode suited to SPS corals. Lagoon provides slower, gentler variation, while Tidal Swell changes from calm flow to chaotic high flow. Nutrient Transport Mode is described as useful for LPS and SPS because it first suspends detritus with wave motion and then uses surging movement to help direct particles toward the overflow.

That does not mean coral labels alone select the pump. A mixed reef may need stronger movement in one section and calmer conditions in another. Loose substrate can also limit usable intensity before the pump reaches its stated maximum. Choose enough capacity to circulate around the aquascape, but retain the ability to reduce output and select a less aggressive mode when the display calls for it.

Where each VorTech model fits

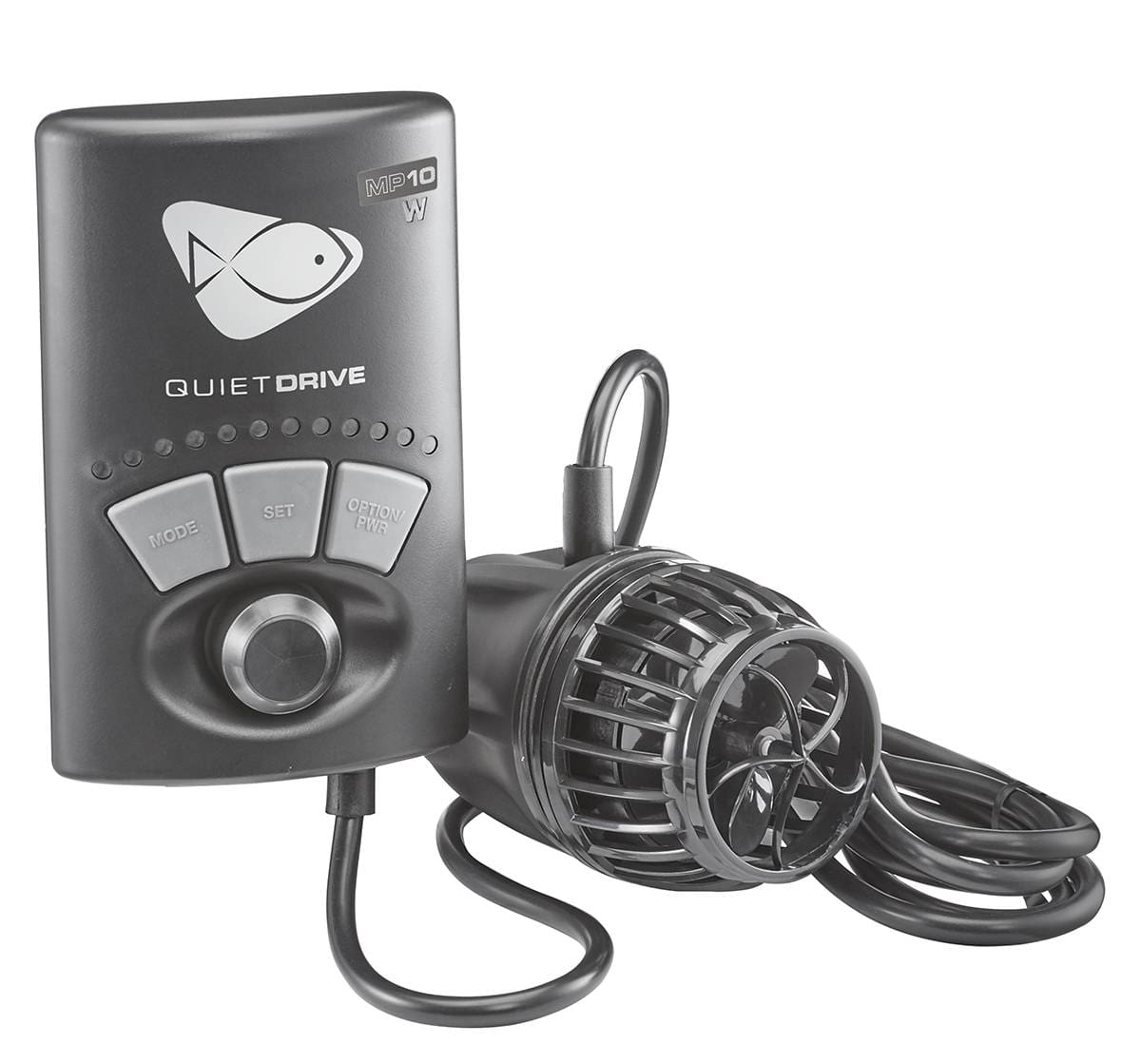

MP10mQD: compact circulation and flexible multi-pump layouts

The MP10mQD delivers 2,500+ GPH, uses 8–19 watts, and is listed for aquariums from 2.5 to 50+ gallons. Its main limitation is the 0.375-inch maximum glass thickness. Within that constraint, it is the natural starting point for nano and smaller reef aquariums.

The MP10 also deserves consideration as part of a pair. Two MP10s have a combined published maximum of 5,000+ GPH, matching the headline rating of one MP40. The layouts are not equivalent, however. A pair creates two independently located flow sources and uses two wet sides, external drivers, controllers, and power supplies. At maximum settings, their stated power ranges total up to 38 watts, compared with 37 watts for one MP40.

Choose the MP10 when physical scale, lower individual output, and the option to distribute pumps around a smaller display matter more than maximum wall-thickness capacity. Do not build an MP10 plan until the mounting glass has been confirmed.

MP40mQD: the versatile middle choice

The MP40mQD raises maximum output to 5,000+ GPH, supports walls up to 0.75 inches, and consumes 9–37 watts. Its published 50–500+ gallon range is broad, making it the most obvious comparison point for medium and large home reef systems.

One MP40 can simplify a layout by using a single wet side and controller. A pair becomes attractive when the aquarium is long, the aquascape interrupts a one-direction circulation path, or paired gyre and wave behavior is a priority. EcoTech’s Gyre Mode can alternate clockwise and counterclockwise circulation when two pumps are paired, with cycles ranging from two seconds to two hours. The Wave Auto Tune guidance also recommends pairing two wireless pumps for the full effect.

The MP40 is not automatically preferable to two MP10s in every smaller display. It offers the same headline maximum as two MP10s with one pump and supports thicker walls, but the two MP10s provide separate placement points. Let glass thickness and circulation geometry break the tie.

MP60mQD: maximum output and thick-wall capability

The MP60mQD is rated at 9,000+ GPH, consumes 10–60 watts, and covers a published range of 120–1,000+ gallons. It also supports 0.375- to 1.00-inch glass, giving it the greatest wall-thickness capacity in this comparison.

Its strongest case is a large aquarium that needs substantial movement from each pump position or has glass beyond the MP40’s limit. One MP60 also has a lower stated maximum power draw than two MP40s combined: 60 watts versus a combined 74 watts. Two MP40s, however, provide a combined published maximum of 10,000+ GPH and two flow origins. Headline totals therefore do not settle the decision.

Use the MP60 when wall thickness, large dimensions, or the need for high output from one mounting point demands it. Consider multiple smaller units when distributing circulation around obstructions is more important than concentrating capacity in one location.

When two smaller pumps beat one larger pump

Two smaller VorTech pumps are generally the more compelling layout when the aquarium’s challenge is distribution rather than raw output. One larger pump is generally more compelling when the challenge is delivering more water movement from a limited number of suitable mounting points.

Favor two smaller pumps when:

• The tank is long enough that circulation from both ends is preferable.
• Rock islands or a dense central structure divide the display into separate flow zones.
• You want to use paired Gyre Mode for clockwise and counterclockwise circulation.
• Wave Auto Tune with two wireless pumps is part of the intended strategy.
• You need independently positioned sources to create changing, three-dimensional movement.

Favor one larger pump when:

• Only one practical mounting location is available.
• The aquascape leaves an open circulation route from that location.
• A thicker tank wall rules out the smaller model.
• You want fewer wet sides, controllers, power supplies, and mounting points.
• The larger model’s output range is needed from a single side of the display.

Do not treat combined GPH as proof that two arrangements will behave identically. Two MP10s and one MP40 share a 5,000+ GPH headline total, while two MP40s nominally total 10,000+ GPH against the MP60’s 9,000+ GPH. The pair divides that capacity between two locations. The single pump delivers its capacity through one wet side. Aquascape and placement determine which geometry is more useful.

Practical placement patterns

Single-pump side placement

A single VorTech can be mounted on a side panel to send its broad pattern across the display. This is the simplest arrangement for a compact or relatively open aquarium. Begin with enough clearance from loose substrate and evaluate whether rockwork blocks movement before it reaches the opposite side. If increasing intensity only disturbs the nearest area without improving circulation behind the rocks, pump count or placement may be the real limitation.

Opposing pumps on the end panels

Placing one pump at each end creates two circulation origins and supports EcoTech’s paired programming. Gyre Mode can alternate clockwise and counterclockwise motion, while other variable modes can prevent the display from relying on one unchanging direction. This pattern is particularly relevant to long rectangular tanks, but both mounting panels must satisfy the chosen model’s thickness requirement.

Offset opposing placement

Opposing pumps do not have to occupy identical positions. Offsetting them can create movement across different portions of the rockwork rather than concentrating both broad patterns along one line. The appropriate offset depends on the tank’s height, substrate response, and coral placement. Adjust intensity conservatively and observe where particles collect or remain trapped.

Same-side or zone-based placement

Some displays have viewing panels, overflows, cabinetry, or aquascape choices that limit end-panel mounting. Two pumps on available panels can still serve different zones, provided each wet side and external driver has a suitable mounting surface. In this situation, choose locations based on the open water paths around the aquascape instead of trying to reproduce a perfectly symmetrical layout.

Programming does not replace correct sizing

All three Mobius-ready QuietDrive models connect directly to iOS or Android devices without an additional wireless hub. They also support MXM integration with Neptune Systems Apex. The available programming expands what a correctly selected pump can do, but a flow mode cannot overcome incompatible glass or a rock wall that physically blocks circulation.

• Lagoon Mode: slowly changes output to simulate a lower-energy lagoon.
• Reef Crest Mode: changes speed frequently to emulate high-energy reef currents and is identified for SPS corals.
• Gyre Mode: creates uniform circular flow and supports alternating clockwise and counterclockwise circulation with two paired pumps.
• Short Pulse Mode: provides pulses from 0.2 to 2 seconds and can create a standing wave at the correct frequency.
• Tidal Swell Mode: varies from calm to chaotic flow and includes a detritus-cleaning surge.
• Nutrient Transport Mode: uses wave motion to suspend detritus, followed by surging flow intended to move particles toward the overflow.
• Feed Mode: turns linked wireless pumps down to idle for feeding.
• Night Mode: provides a calmer scheduled period with custom on and off hours.
• Wave Auto Tune: creates a standing wave intended to help sweep particles from the sandbed and rockwork.

Start below maximum output and use programming to refine the circulation pattern. A high-capacity pump running at a reduced setting can be appropriate, but buying far beyond the tank’s usable intensity does not automatically improve distribution.

Final selection checklist

1. Verify the intended mounting-panel thickness. Eliminate any model that does not support it.
2. Record the aquarium’s length, width, and height. Do not rely on gallons alone.
3. Map the aquascape. Identify open water paths and structures that divide the display into sheltered zones.
4. Choose one or two flow origins. Use one larger pump for a simple open route or two smaller pumps when separate zones and paired patterns matter more.
5. Consider coral and sandbed response. High-energy SPS guidance does not mean every location should receive maximum output.
6. Compare the complete layout. A pair means two wet sides, external drivers, controllers, power supplies, and mounting locations.
7. Select a starting mode and tune intensity. Lagoon, Reef Crest, Gyre, Tidal Swell, and Nutrient Transport Mode serve different circulation goals.

The bottom line

The MP10 is the best fit within this lineup for smaller tanks and multi-pump layouts where every mounting panel is no thicker than 0.375 inches. The MP40 is the flexible middle option, doubling the MP10’s published maximum flow and supporting walls up to 0.75 inches. The MP60 is built for large-format systems, 9,000+ GPH output, and glass up to 1.00 inch thick.

Choose the model only after choosing the circulation geometry. If one open path crosses the aquarium, one appropriately sized larger pump may be the cleanest answer. If length or rockwork divides the display, two smaller pumps can beat one larger pump by placing broad, programmable flow on both sides of the problem. Wall thickness sets what is possible; dimensions, aquascape, substrate, and coral placement decide what is preferable.
