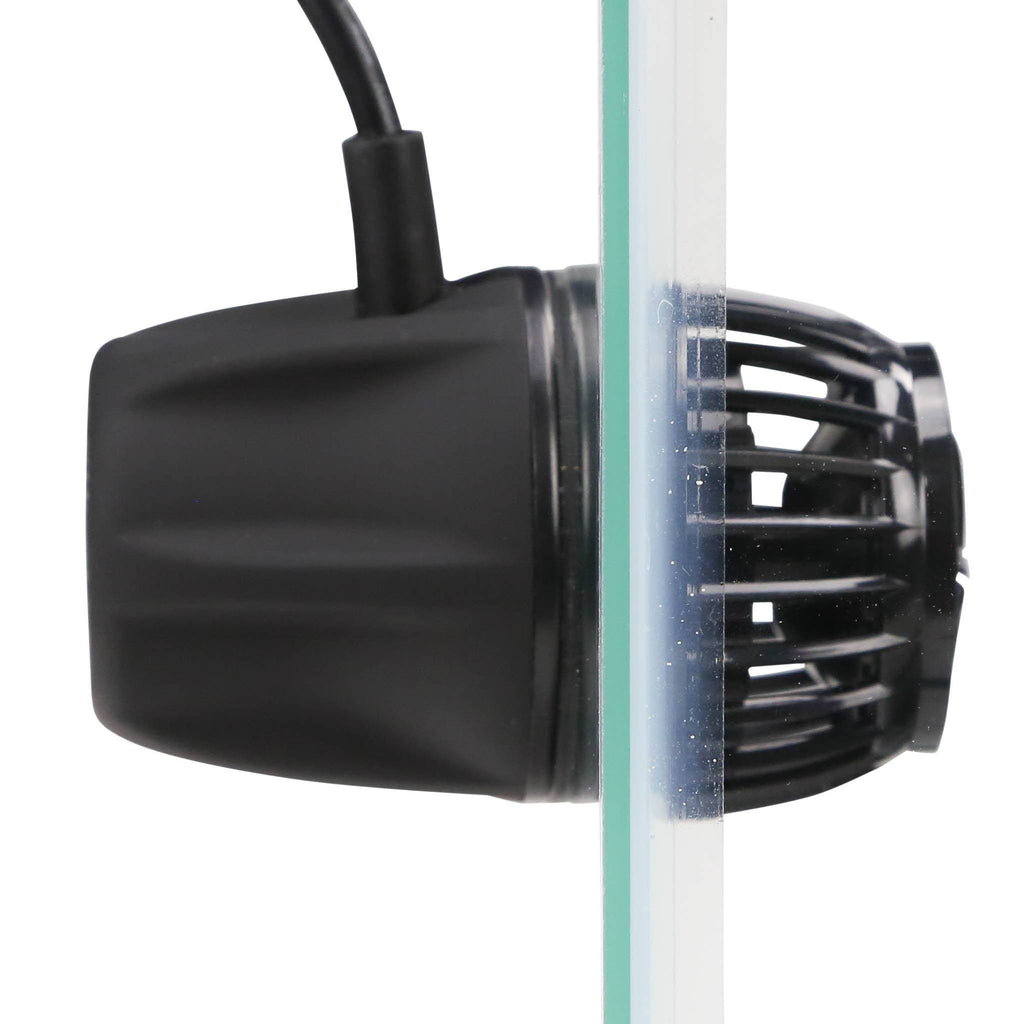

The VorTech MP10mQD delivers 2,500+ GPH of adjustable flow through a patented external-drive architecture that places the motor and all electronics outside the aquarium entirely. A magnetic coupling connects the external driver to the internal wet side through tank glass up to 0.375 inches (9.5mm) thick, producing three-dimensional flow and gyre conditions without the thermal or electrical drawbacks of submersible motors. The result is broad, diffuse water movement with no concentrated "hot spots" — a meaningful advantage for mixed reef systems where flow distribution directly affects coral health and detritus management.
Control is handled through the QuietDrive controller included in the box or wirelessly via the EcoTech Marine Mobius app on iOS or Android. No additional interface module is required for wireless operation. The app exposes 12 distinct flow modes covering everything from steady constant flow to reef crest simulation and oscillating gyre patterns. Feed Mode drops all linked EcoTech pumps to idle at a single button press, while Night Mode runs on a programmable schedule to reduce turbulence during dark hours. Wave Auto Tune Mode can be particularly effective at dislodging detritus from rockwork when paired with a second pump on the opposite tank wall.
MXM compatibility extends the MP10mQD's integration options to Neptune Systems Apex controllers, allowing EcoTech pumps and AquaIllumination fixtures to be managed alongside other Apex-connected equipment through Apex Fusion — without switching between separate apps. Power consumption ranges from 8 to 19 watts depending on speed, making this one of the more efficient options in its flow class.
The MP10mQD is best suited to tanks in the 2.5–50 gallon range, though its upper flow capacity can serve as supplemental circulation in larger systems. Glass thickness must not exceed 0.375 inches for proper magnetic coupling. The pump ships complete with the wet side, QuietDrive driver, wireless module, foam strainer, accessory hardware, and power supply — no additional purchases are required to get started.
Overview
Flow Without Compromise.
The MP10mQD combines external-drive efficiency with app-based control to cover the full range of reef flow requirements in a low-profile, low-risk package.
Wireless Control
- Mobius app ready — no extra hardware required
- Direct connection to iOS or Android devices
- MXM support for Neptune Systems Apex integration
Flow Performance
- 2,500+ GPH maximum flow rate
- 12 selectable flow modes including Feed, Night, and Wave Auto Tune
- Broad, three-dimensional flow pattern eliminates hot spots
Safe External Design
- All electrical components remain outside the aquarium
- Magnetic coupling through glass up to 0.375" (9.5mm) thick
- 8–19 watt power consumption across speed range
Inside the VorTech MP10mQD - EcoTech Marine

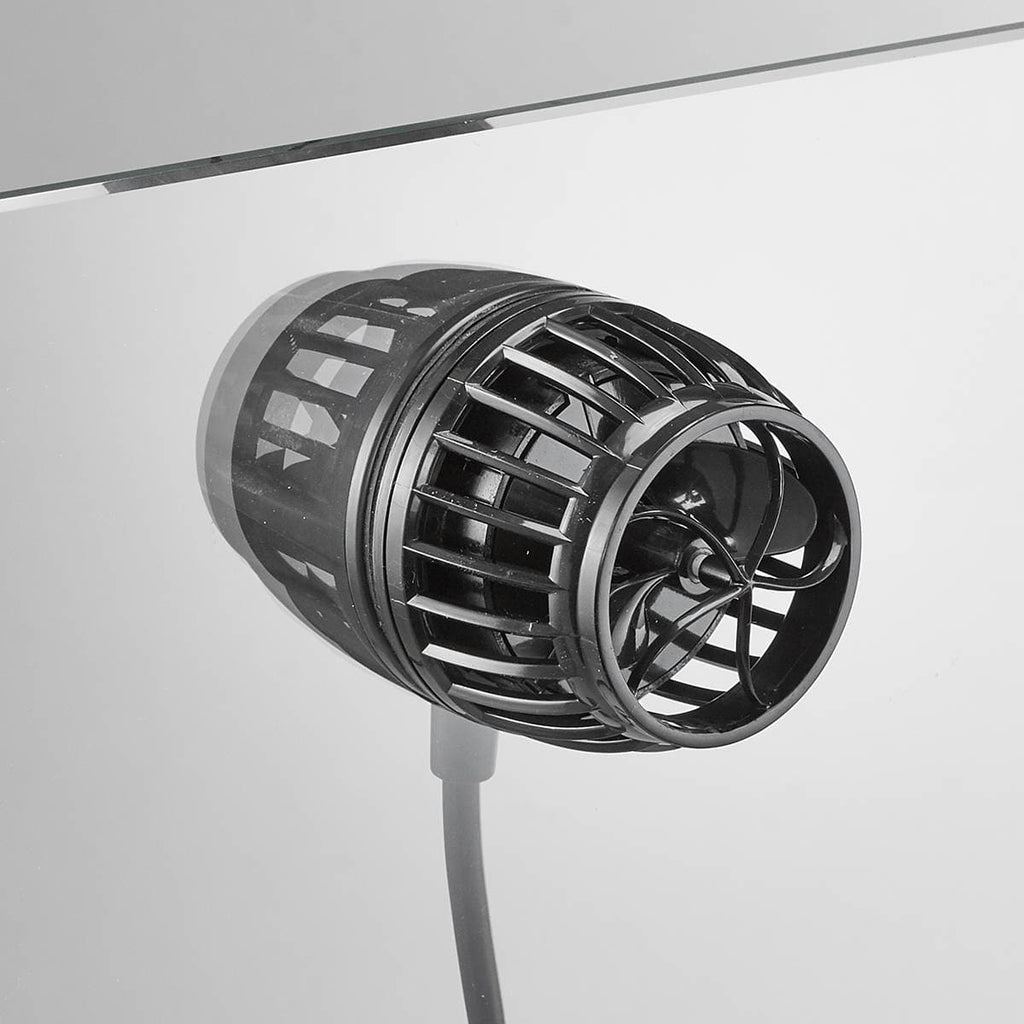

VorTech MP10 Wet Side
Internal propeller assembly that mounts inside the tank
- Magnetically coupled to external driver — no in-tank electronics
- Compatible with glass up to 0.375 inches (9.5mm) thick
- Produces broad, three-dimensional flow and gyre conditions
- Low-profile form factor minimizes visual intrusion

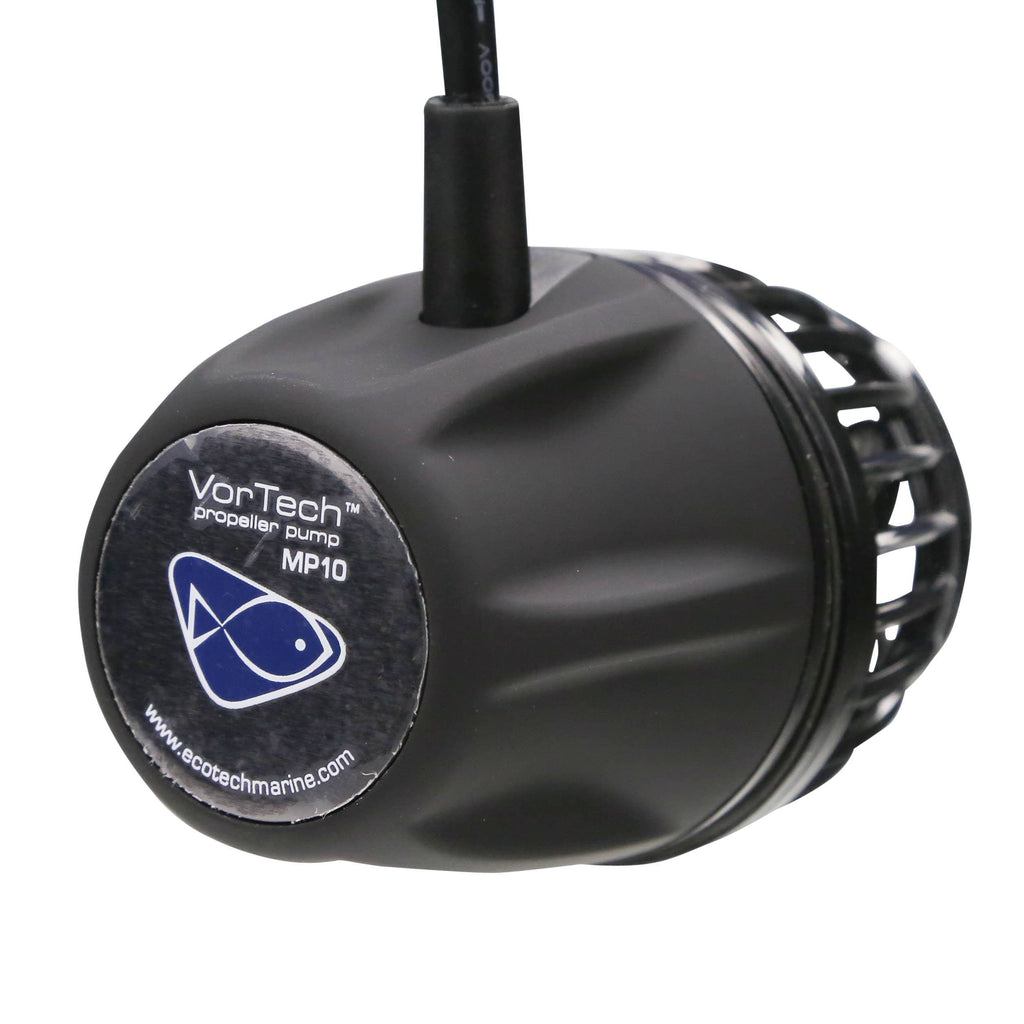

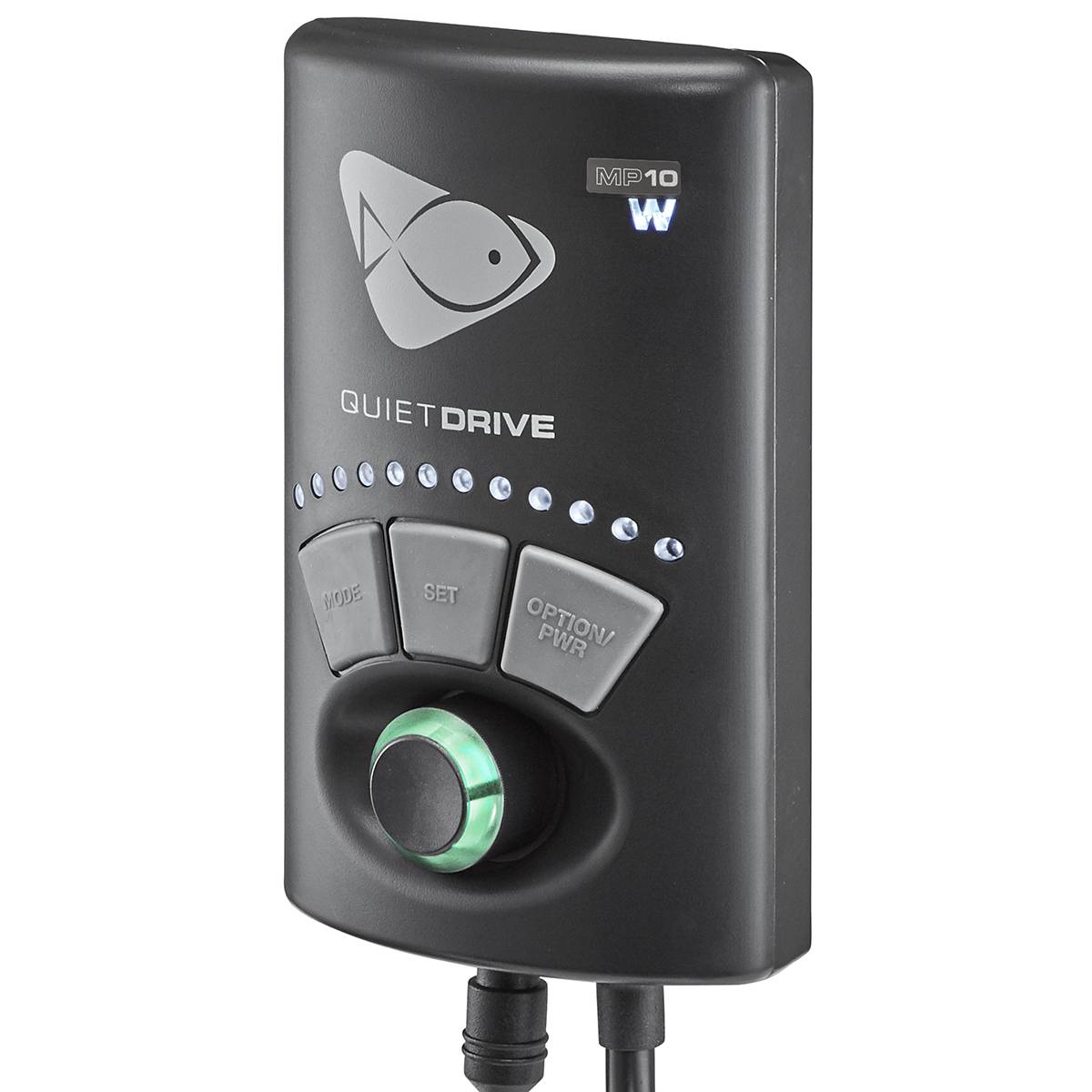

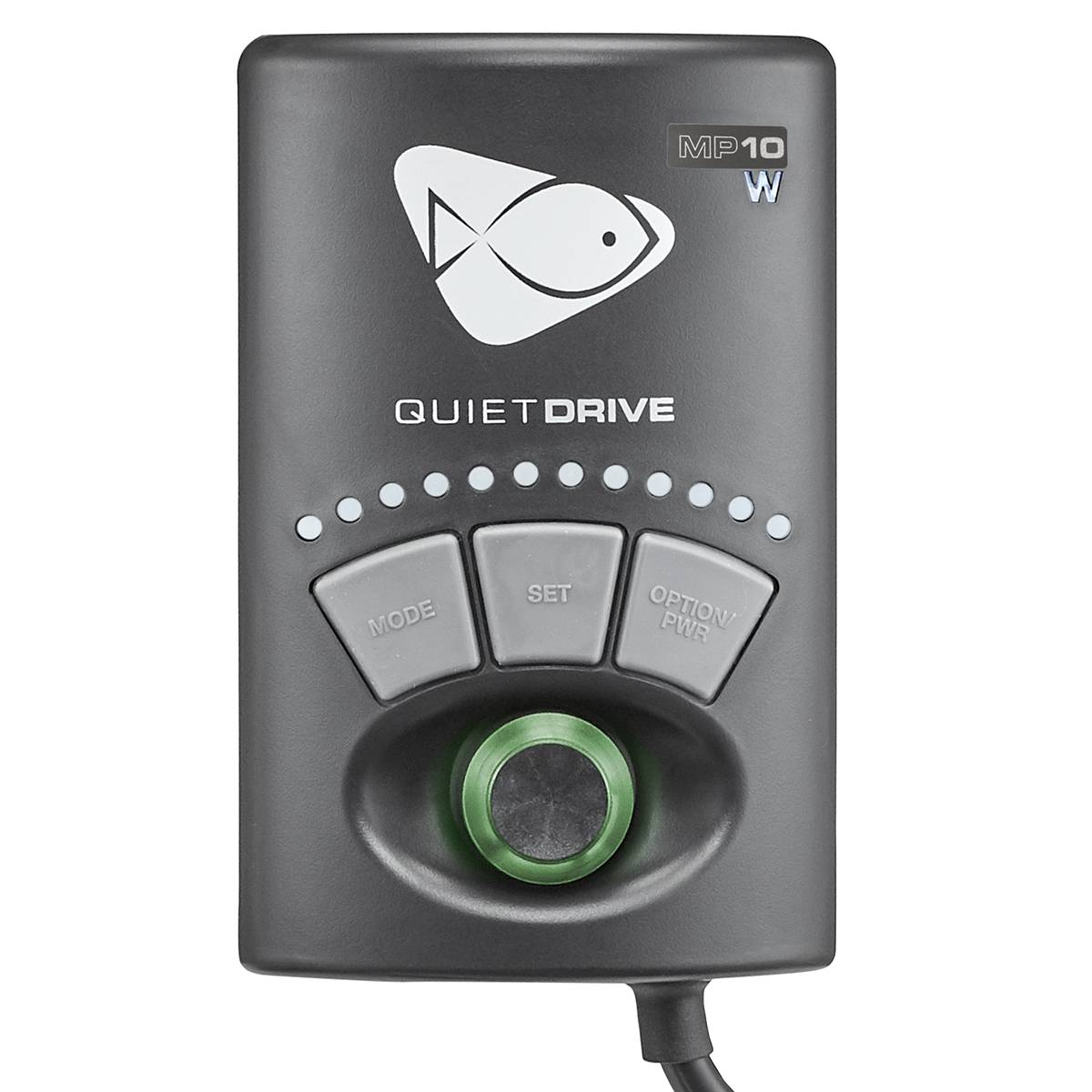

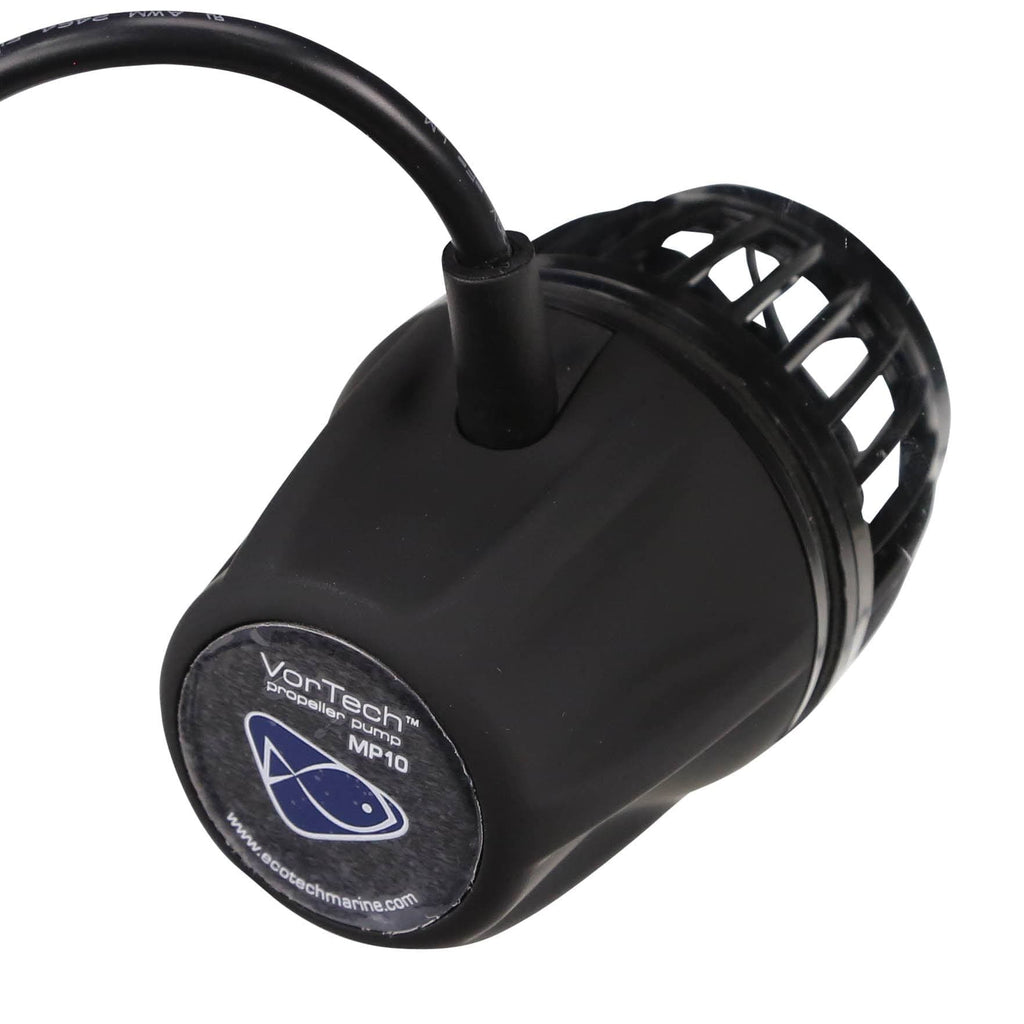

VorTech MP10wQD QuietDrive Controller
External driver and controller unit housing the motor and electronics
- QuietDrive technology reduces audible noise during operation
- Powers and drives the wet side via magnetic coupling
- Manual control interface with direct hardware button inputs
- Supports Feed Mode pause at the press of a button
- 8–19 watt power draw across operating range
MP10 QuietDrive Wireless Module
Enables Mobius app and MXM wireless control without additional hardware
- Built-in Mobius compatibility — connects directly to iOS or Android
- Supports MXM protocol for Neptune Systems Apex integration
- Allows access to all 12 flow modes wirelessly
- No separate EcoTech interface device required

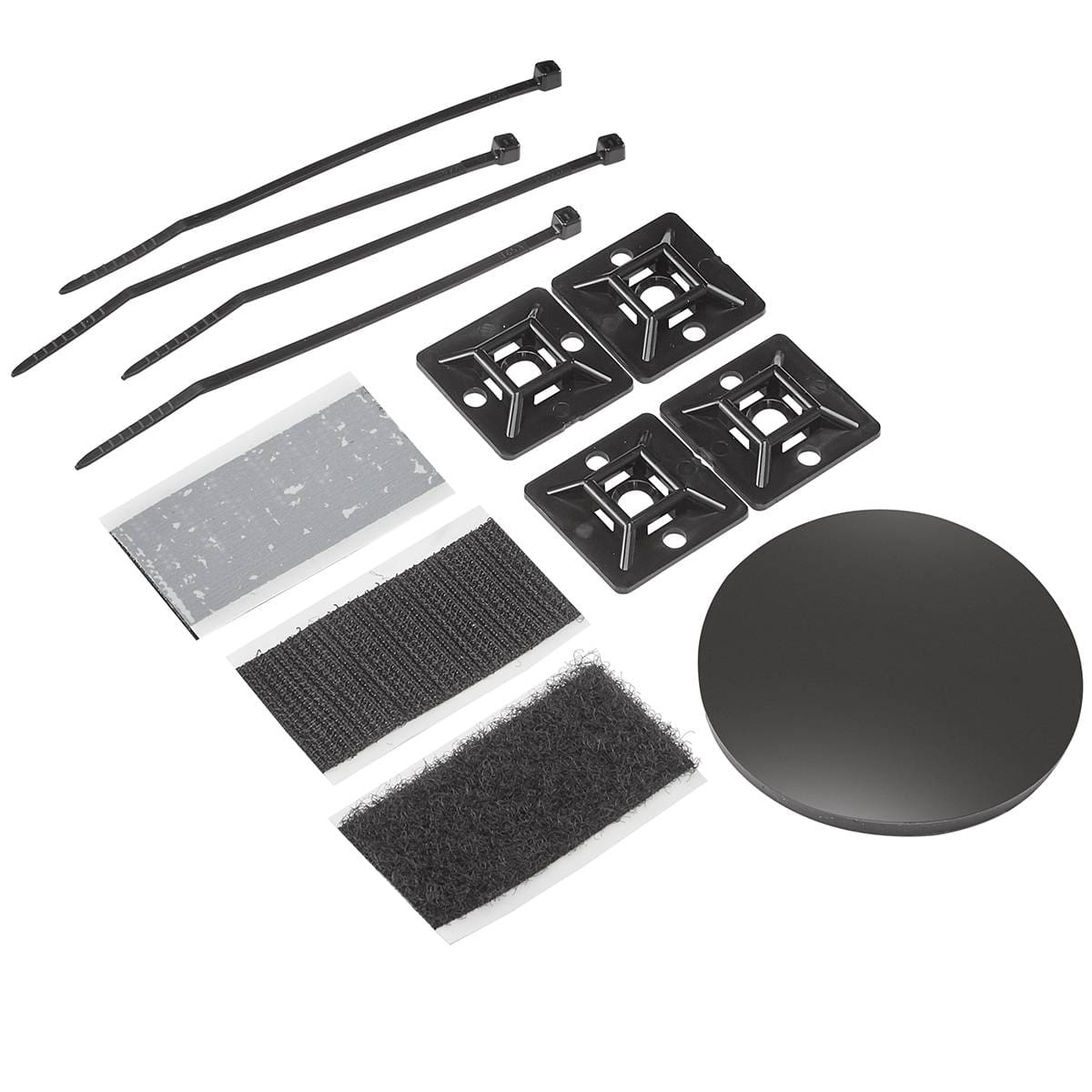

Accessory Hardware Kit
Mounting hardware and spacer for proper glass-thickness coupling
- Includes spacer for achieving correct magnetic alignment
- Mounting hardware for securing the driver to tank exterior
- Sized for glass up to 0.375 inches (9.5mm) thick

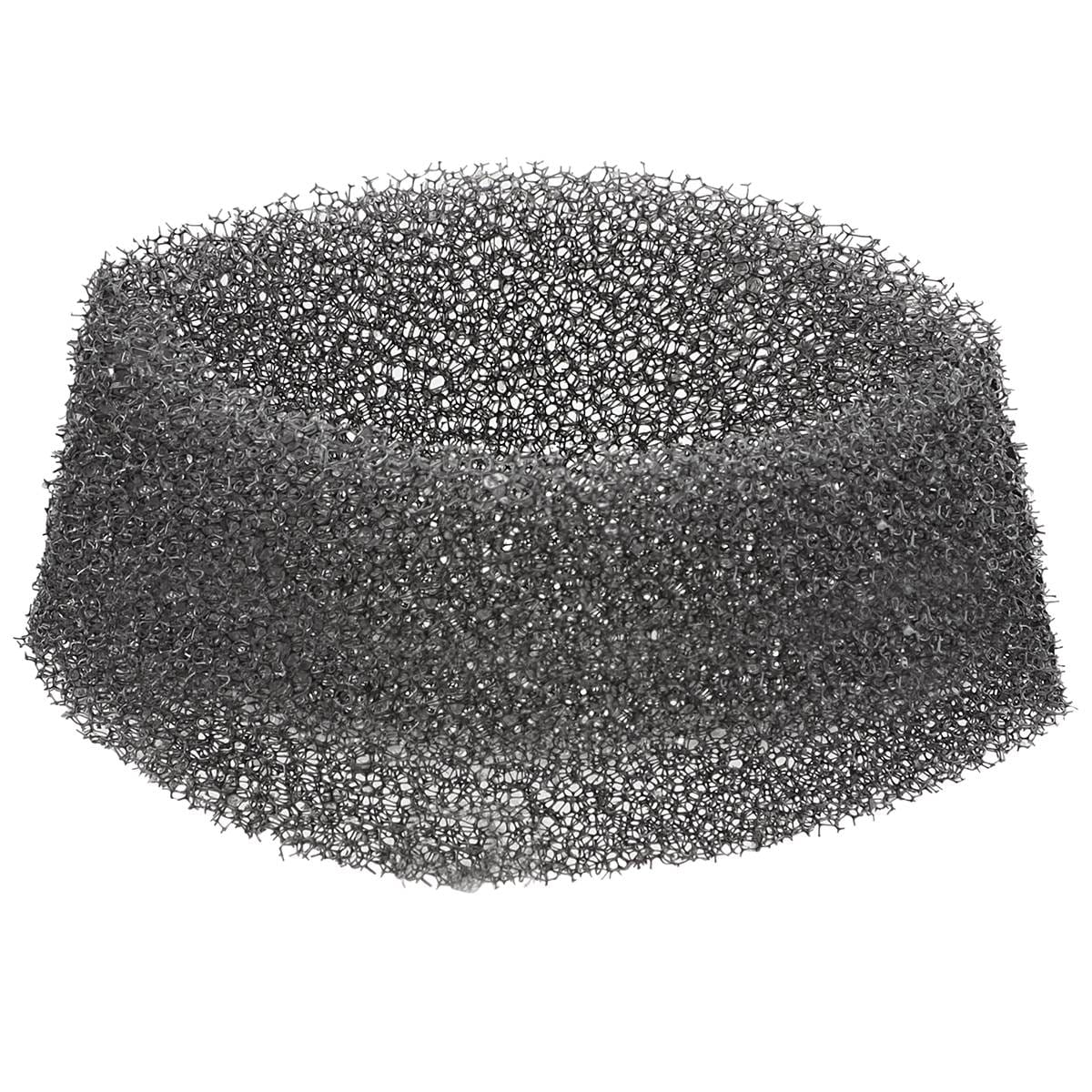

Foam Strainer
Foam guard that protects small livestock from impeller contact
- Fits over wet side intake to prevent small animals from entering
- Referred to as "Foam Guard" in product documentation
- Recommended for tanks housing small fish, shrimp, or invertebrates

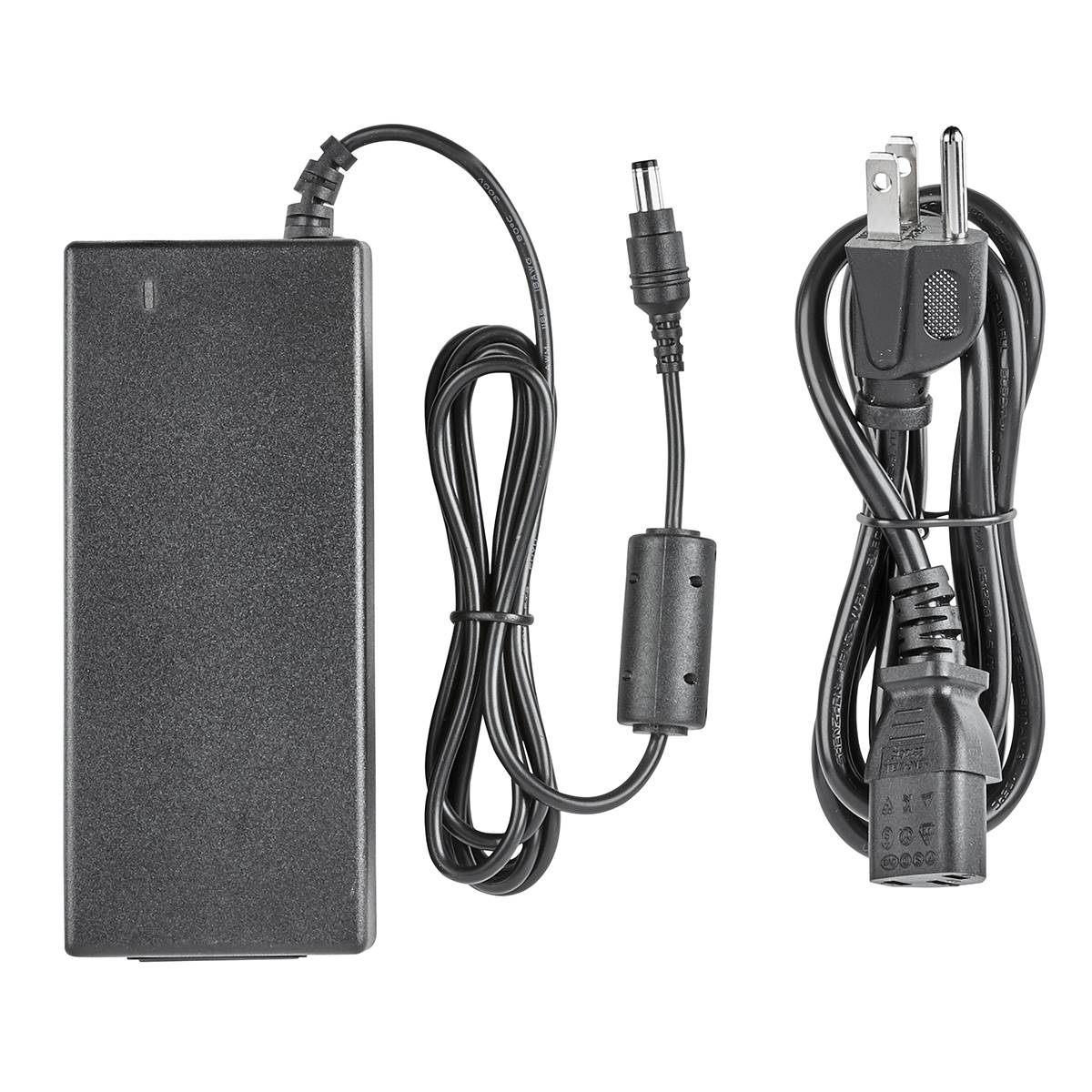

Power Supply
Dedicated power supply for the QuietDrive controller
- Included in box — no separate purchase required
- Supplies power to the external QuietDrive driver unit
- Supports 8–19 watt operating range of the MP10mQD

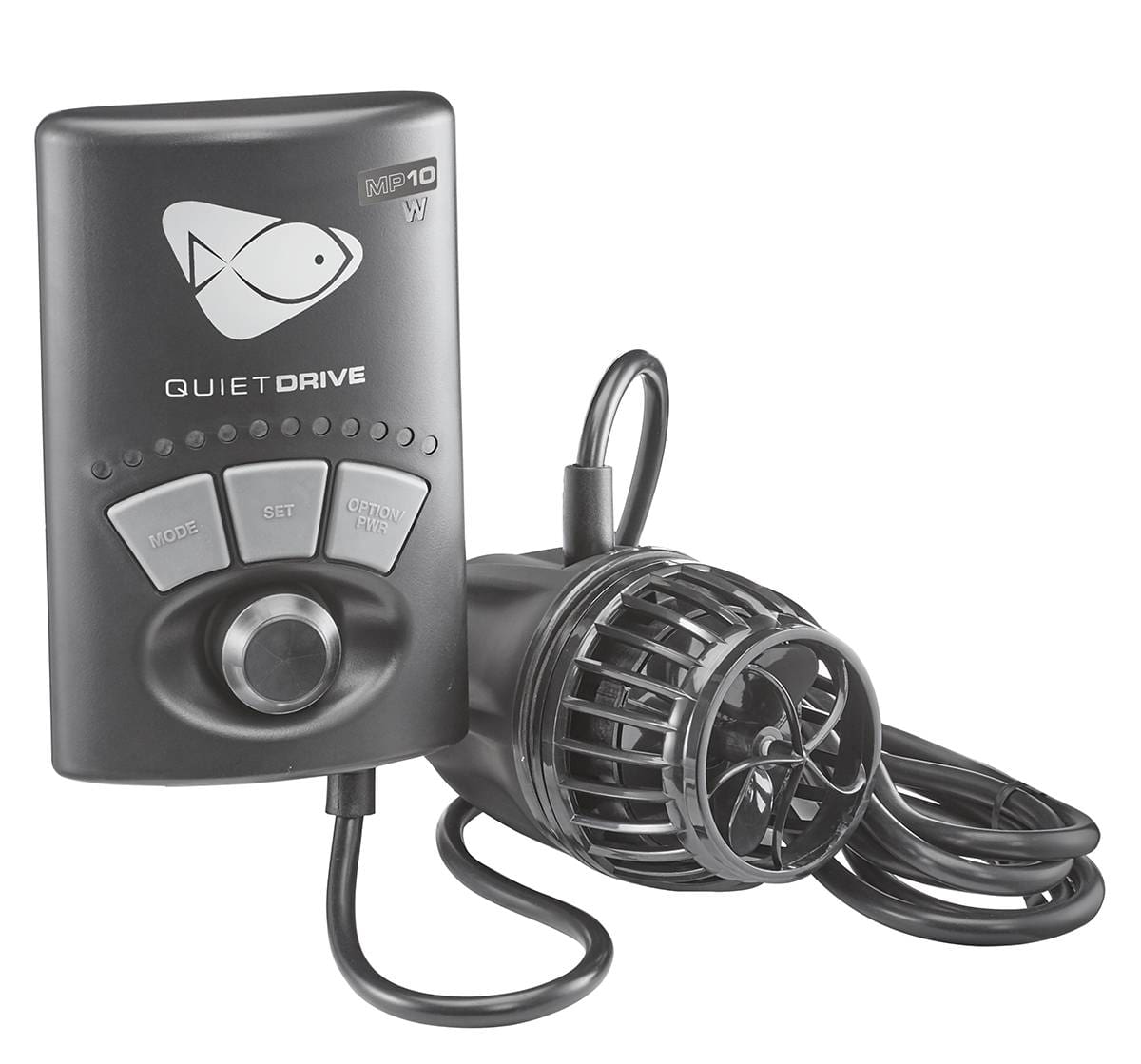

What's Included
-
VorTech MP10 Wet Side
Internal propeller assembly that mounts inside the tank
-
VorTech MP10wQD QuietDrive Controller
External driver and controller unit housing the motor and electronics
-
MP10 QuietDrive Wireless Module
Enables Mobius app and MXM wireless control without additional hardware
-
Accessory Hardware Kit
Mounting hardware and spacer for proper glass-thickness coupling
-
Foam Strainer
Foam guard that protects small livestock from impeller contact
-
Power Supply
Dedicated power supply for the QuietDrive controller
Specifications
MP10mQD PUMP
- Mobius Ready
- Yes
- Max Flow Rate
- 2,500+ GPH
- Recommended Tank Size
- 2.5–50+ gallons
- Maximum Tank Glass Thickness
- 0.375 inches (9.5mm)
- Power Consumption
- 8–19 watts
- Flow Modes
- 12
- App Compatibility
- iOS, Android (Mobius)
- Controller Protocol
- MXM (Neptune Systems Apex compatible)
VORTECH QD SERIES COMPARISON
- MP10mQD Max Flow
- 2,500+ GPH
- MP10mQD Tank Size
- 2.5–50+ gallons
- MP10mQD Max Glass Thickness
- 0.375 in (9.5mm)
- MP10mQD Power
- 8–19 watts
- MP40mQD Max Flow
- 5,000+ GPH
- MP40mQD Tank Size
- 50–500+ gallons
- MP40mQD Max Glass Thickness
- 0.75 in (19mm)
- MP40mQD Power
- 9–37 watts
- MP60mQD Max Flow
- 9,000+ GPH
- MP60mQD Tank Size
- 120–1,000+ gallons
- MP60mQD Max Glass Thickness
- 0.375–1.00 in (9.5–26mm)
- MP60mQD Power
- 10–60 watts
