Radion XR30 G6 Blue LED Light Fixture - EcoTech Marine

The EcoTech Marine Radion XR30 G6 Blue is the fluorescence-focused version of the larger G6 fixture, intended for reef aquarists who prefer a strongly blue or actinic presentation over the more balanced output of the XR30 G6 Pro. Its 100-diode array combines royal blue, blue, violet, ultraviolet, cool white, warm white, red, and green LEDs, but the mix is weighted toward the blue end of the spectrum. The result is a fixture that can be tuned from a deep actinic appearance toward a crisper white-blue look without giving up the spectral emphasis that distinguishes the Blue model. For a large reef, the main reasons to consider it are its broad coverage, fluorescence-oriented diode mix, and flexible mounting and control options.

Coverage comes from EcoTech’s HEI2 optical system. A redesigned primary lens works with the hemispherical secondary lens to produce a 126.3-degree spread, compared with 110.5 degrees for the preceding optical design described in the source. EcoTech lists a recommended light spread of 36 by 30 inches and a maximum spread of 48 by 30 inches. Those dimensions are useful for planning fixture count, but they should not be treated as universal tank ratings or guarantees of a particular PAR level. The recommended footprint is the more conservative basis for laying out a large reef, while the maximum figure describes the outer extent of coverage. Coral placement, rock structure, aquarium dimensions, and the amount of overlap between fixtures still matter.

For initial fixture-count planning, divide the tank’s illuminated length into approximately 36-inch sections and use the 30-inch recommended front-to-back spread as the second reference. A 72-inch-long display with a front-to-back dimension within that recommended footprint, for example, geometrically corresponds to two 36-inch coverage sections. Tanks wider than 30 inches, unusually dense aquascapes, or layouts with large branching colonies may call for a different arrangement or more overlap. Conversely, the listed maximum coverage reaches 48 by 30 inches, but designing exclusively around that maximum leaves less room for overlap. The source does not provide tank-by-tank quantity prescriptions, so final fixture count should be based on the actual illuminated area rather than total aquarium volume alone.

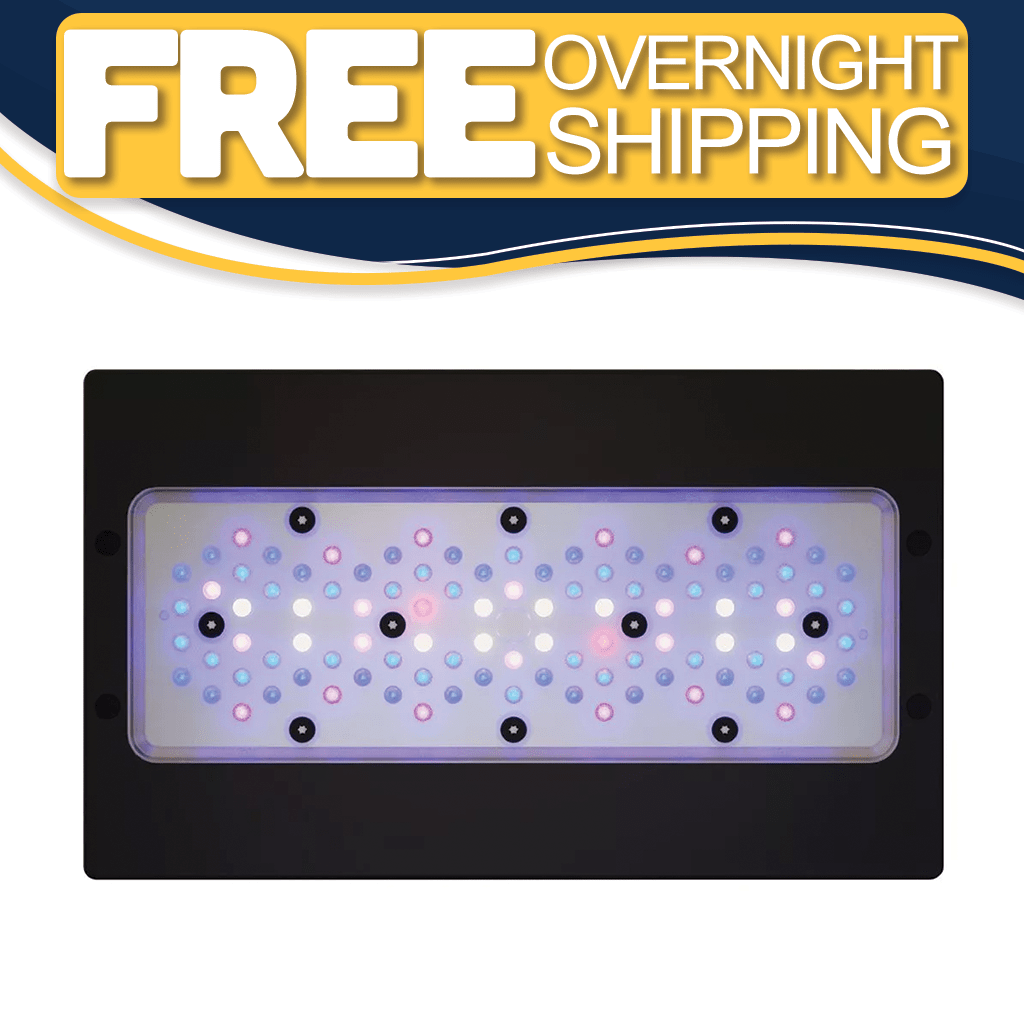

The Blue model’s spectral identity comes from 32 royal blue LEDs, 16 blue LEDs, eight violet LEDs at 430nm, four ultraviolet LEDs at 395nm, two at 405nm, and four at 415nm. The array also contains 16 cool white, eight warm white, four red, and six green LEDs, bringing the total to 100. The addition of 395nm diodes and the blue-weighted mix are specifically intended to increase color intensity and fluorescence. Mobius allows the appearance to be adjusted between actinic and crisp, so choosing the Blue does not lock the aquarium into only one visual setting. It does, however, establish a distinctly blue-focused starting point compared with the broader spectral balance of the Pro.

Choosing between the XR30 G6 Blue and XR30 G6 Pro should begin with the desired viewing character. The Blue is the more direct choice when fluorescence, deep-blue intensity, and an actinic-to-crisp blue adjustment range are priorities. The Pro uses a balanced LED mix with proven spectra described as similar to metal-halide output and is used in public aquariums, aquaculture facilities, and coral spawning laboratories. That does not make one model universally preferable. An aquarist seeking a more neutral or broadly balanced presentation may favor the Pro, while someone building a display around fluorescent coral coloration is more likely to prefer the Blue. The distinction is spectral emphasis, not a stated difference in aquarium-size rating.

The XR30 G6 Blue is suitable for SPS-focused systems within the capabilities described by EcoTech. The fixture supports the CoralLab AB+ spectrum, a lighting program developed and tested by EcoTech, and the source identifies SPS AB+ as a popular program intended to deliver results from Radion fixtures. Its HEI2 optics are designed for even PAR, broad color mixing, and reduced shadowing, all relevant considerations as SPS colonies develop complex branches. The wide beam can also reflect from aquarium side glass and return light toward the reef, helping illuminate coral undersides. However, the source does not provide species-specific intensity settings, acclimation schedules, or guaranteed PAR at a given depth, so programming should remain specific to the reef.

EcoTech recommends mounting the XR30 G6 Blue eight to ten inches above the aquarium. That range is the appropriate starting point when planning around the stated 36-by-30-inch recommended spread. Maintaining a consistent mounting height across multiple units also helps make their footprints easier to align. On a large reef, place fixtures so the recommended coverage areas meet or overlap rather than spacing them solely according to the 48-inch maximum. The RMS Track System is particularly useful when placement may need refinement because fixtures can slide along the rail. The source does not prescribe a universal orientation or overlap distance, although the single-light RMS arm permits mounting at 90-degree increments to suit the aquarium’s shape.

Several EcoTech mounting approaches support different installations. The RMS Mounting Arm is intended for one fixture mounted from the tank and allows the light to be positioned in 90-degree increments. The RMS Track System places multiple Radions on one rail and allows them to slide back and forth, making it the more adaptable option for long tanks or mixed XR15 and XR30 arrays. Multi-light rails are available in lengths up to eight feet and can be suspended with a hanging kit or supported from the aquarium with the RMS Multi-Arm Kit. A separate hanging kit is also available when tank mounting is impractical or when a suspended installation is preferred. Mounting hardware beyond the included eyelets is sold separately.

The G6 remains backward compatible with the mounting options and accessories offered for the previous Radion generation. This is especially relevant for an existing Radion owner evaluating a fixture upgrade, because compatible G5-era mounting infrastructure can be retained rather than automatically replaced. Compatibility should still be considered at the system level: a single-light arm, a multi-light rail, and a hanging installation solve different placement problems. For a large reef, the track system provides the clearest path to aligning several fixtures and changing their positions later. For one XR30 over a suitable footprint, the single RMS arm is the simpler tank-mounted solution. The supplied eyelet mounts support a hanging-style installation, but a complete hanging solution is not listed as included.

Programming is handled through EcoTech’s Mobius platform using a current-version iOS or Android device. Local wireless setup, scheduling, spectrum adjustment, moonlight simulation, and weather simulation can be managed without purchasing a separate controller. Mobius can also provide centralized control for compatible EcoTech pumps, lights, dosing, and flow equipment. The available CoralLab AB+ program offers a documented starting spectrum for aquarists who do not want to construct a schedule channel by channel. Experienced users can instead adjust the Blue’s color channels to move between deeper actinic and crisper aesthetics. Because the fixture is highly programmable, preserving a known program before making visual changes is a practical way to keep spectral and aesthetic decisions distinct.

Neptune Apex integration is available through MXM. With an MXM module, compatible EcoTech and AquaIllumination pumps and lights can be brought under wireless control through Apex and Apex Fusion. This allows an Apex-based reef to manage the XR30 G6 Blue through the same interface used for other connected equipment rather than requiring routine switching between applications. MXM is the relevant bridge for this integration; the source does not state that direct Apex control is built into the fixture without it. Aquarists who do not use Apex can operate the light through Mobius without an additional controller, while those already committed to Apex Fusion can choose MXM for consolidated control.

The fixture measures 11.8 inches long, seven inches wide, and 1.5 inches high, with a listed weight of 4.5 pounds. Maximum variable power usage is 215 watts, the input specification is 100–240VAC, 4.0A, 50/60Hz, and the cable is 13 feet long. These dimensions and the cable length should be checked against the canopy, mounting position, power-supply location, and cable route before installation. The compact housing uses a fan and heatsink, with the fan described as quiet. Included in the box are the XR30 G6 Blue fixture, power supply, power adapter cable, microfiber cloth, eyelet mounts, and quick-start guide. No RMS arm, track, multi-arm kit, or complete hanging kit is listed among the included items.

For ongoing ownership, Mobius provides access to programming changes without requiring a separate control purchase, while the included microfiber cloth supports care of the fixture’s exterior and optical area. The source does not specify a cleaning interval or a user-service schedule, so maintenance timing should not be inferred from the product record. The key long-term planning decisions are therefore physical access, secure mounting, and a fixture layout that can be adjusted as the reef changes. The XR30 G6 Blue is best matched to a large reef where broad coverage and fluorescent presentation are central goals. Choose the Pro instead when a balanced, metal-halide-like spectral mix is the stronger priority; choose the Blue when actinic depth, adjustable crisp-blue color, and the 395nm-supported fluorescence emphasis better fit the display.
