Choosing a 151–200+ Gallon Aquarium
Large 151–200+ gallon aquariums provide the water volume and display footprint needed for ambitious reef systems, larger saltwater fish, and complex aquascapes. At this scale, the right choice depends on the complete installation: tank dimensions, stand and sump design, plumbing, equipment access, delivery, and long-term operating needs.
Large-Aquarium Planning Checklist
- Structure and access: Confirm filled system weight, floor support, doorway and stair clearance, delivery route, final placement, and working space around the aquarium.
- Tank dimensions: Compare length, width, and height based on fish swimming room, aquascaping depth, coral placement, and your ability to reach every part of the display.
- Filtration and plumbing: Review sump capacity, drain and return configuration, emergency overflow design, union placement, and room for skimmers, reactors, and refugium equipment.
- Heat, flow, and power: Plan circulation, return flow, lighting coverage, heating or cooling, electrical circuits, and backup protection for the final system volume.
Display Volume vs. Total System Volume

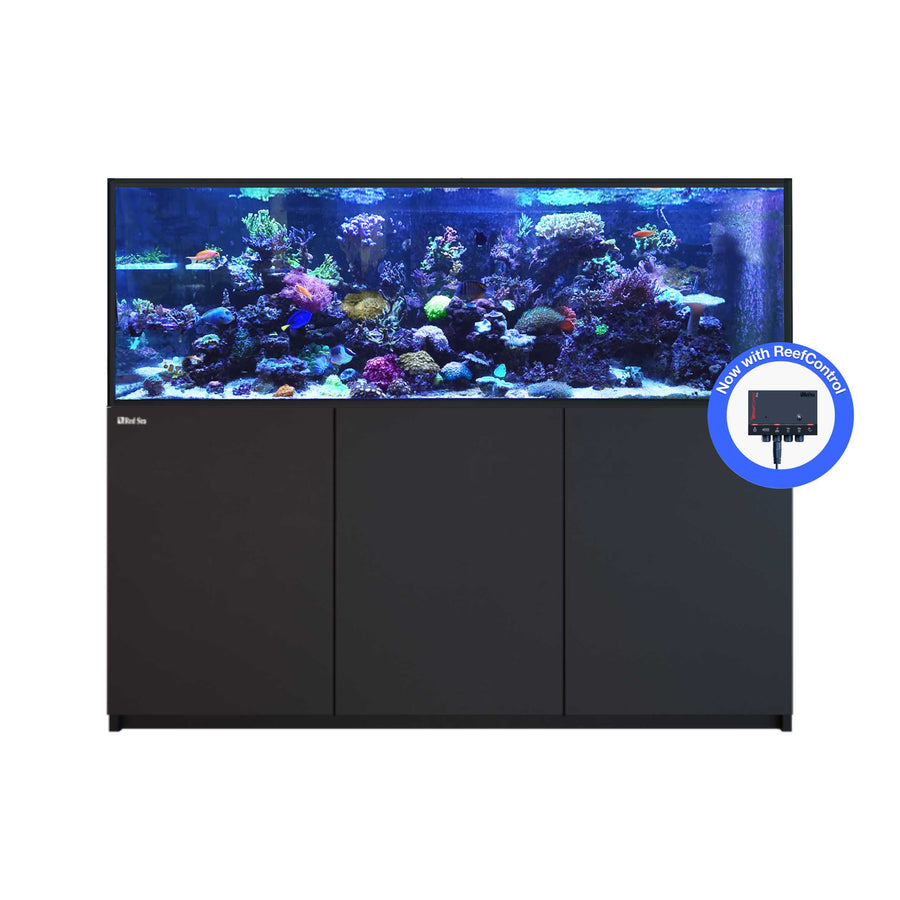

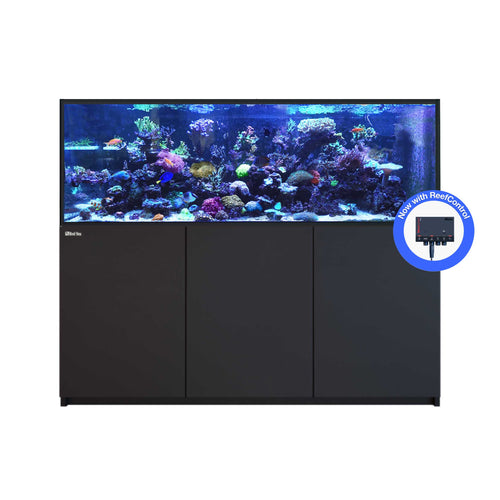

Large reef systems are usually named by total water volume, display plus sump, so two "200 gallon" listings can hold very different display tanks. The Red Sea REEFER 750 G3+ totals 198.1 gallons, with a 158.5-gallon display and a 39.6-gallon sump. The UNS Reef System R180 totals 185 gallons, with a 147-gallon display on a 70.9" × 23.6" footprint. Use display dimensions to plan rockwork, swimming room, and lighting coverage, and total volume to size heaters, salt mixing, and water changes.
Standard, Peninsula, and S-Series Layouts
- Standard systems: the REEFER 625 and 750 G3+ are built to sit against a wall and are viewed mainly from the front, which keeps plumbing and equipment access simple.
- Peninsula systems: the REEFER Peninsula S-700 and S-950 G3+ are designed to be viewed from three sides, so the aquarium can extend into a room or act as a divider.
- S-series depth: on the same 59.1" length, the REEFER S-700 G3+ display is deeper and taller than the REEFER 625 G3+ (26.8" × 25.6" vs. 25.6" × 23.6"), raising display volume from 131.3 to 149 gallons and giving you more room for aquascaping.
- Reef-ready vs. complete: standard REEFER G3+ systems leave lighting, flow, the return pump, and the skimmer to you, while REEFER MAX packages bundle matched Red Sea equipment controlled in the ReefBeat app. Compare both in Red Sea REEFER aquariums and REEFER MAX aquariums.
Sizing Equipment for 150–200+ Gallons

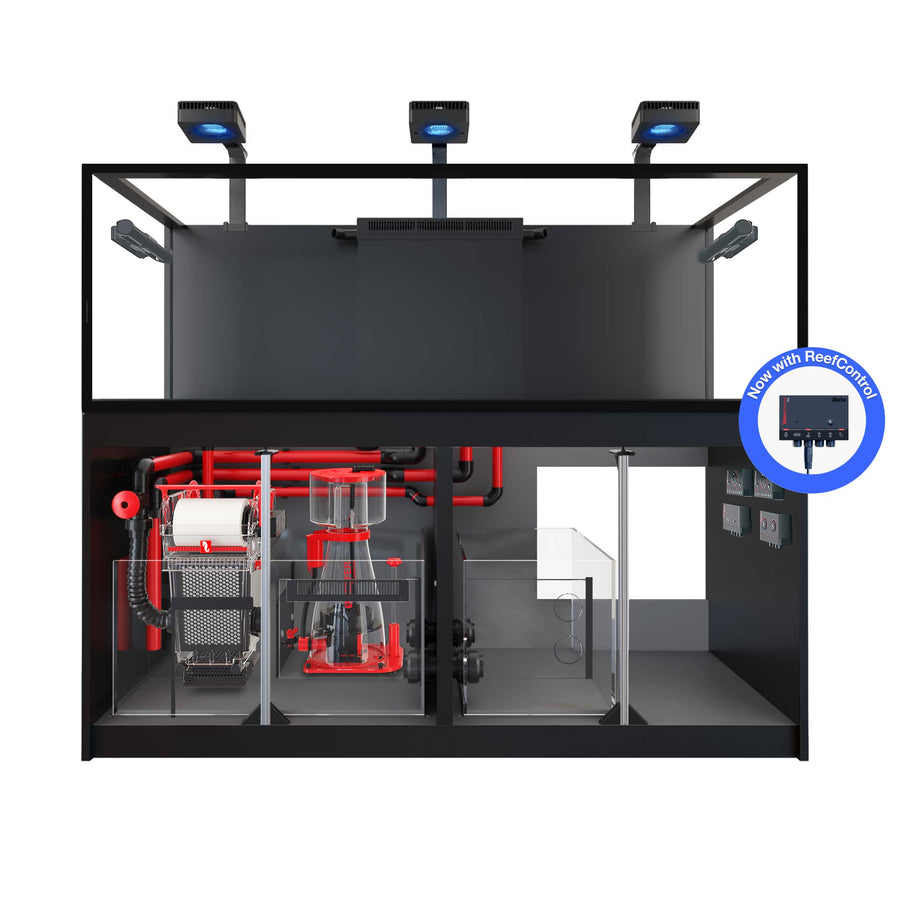

- Return pump: choose a pump by the flow your overflow and sump are designed to handle at your actual head height, then dial it in. Red Sea pairs the REEFER MAX 750 G3+ with a ReefRun G2 8000 rated at 1,080–2,200 GPH. Browse return pumps for reef-ready builds.
- In-tank flow: a 6-foot display needs at least two powerheads working from different angles to avoid dead spots behind the rockwork, with more flow for SPS-dominant reefs than for LPS and soft corals.
- Lighting coverage: plan fixtures by display length and depth. The 6-foot REEFER MAX 750 G3+ uses three ReefLED G2 170 fixtures; on a 5-foot footprint, the MAX 625 G3+ uses two, while the deeper MAX S-700 G3+ uses three. Compare options in aquarium lighting.
- Skimming and heating: size the protein skimmer to the real water volume and expected bioload, and split heating across two heaters on a controller so a single failure cannot overheat or chill the system.
Delivery and Installation
Systems this size ship by freight, and the display alone usually takes several people to move. Before delivery, measure every doorway, hallway, and stair turn against the crated dimensions, and clear a level path to the final spot. Leave working room at the ends and back of the cabinet for plumbing unions and equipment, and plan dedicated electrical circuits with GFCI protection. Once the system is in place, level the cabinet, fill slowly, and check every bulkhead and union for leaks before you add rock, sand, or livestock.
Looking for something a little smaller? Our 100–150 gallon aquariums cover reef systems on 4- and 5-foot footprints.
Build a Maintainable System
Compare integrated options in our all-in-one aquarium collection, then plan monitoring with aquarium controllers and nutrient export with appropriately sized protein skimmers. Equipment should be selected from the manufacturer’s rated capacity and the system’s expected livestock load.
Always confirm current manufacturer specifications, included components, freight delivery terms, warranty coverage, and professional installation needs before purchase. Top Shelf Aquatics can help compare large reef-ready systems and supporting equipment for your available space and goals.
