Short answer: choose the Vectra S2, M2, or L2 from the flow your return system must deliver after vertical lift and plumbing resistance—not from display-tank volume alone. The S2 is the compact 1,400 GPH option, the M2 raises capacity to 2,000 GPH, and the L2 reaches 3,100 GPH. The M2 and L2 also share a higher 21.5-foot maximum head rating, compared with 11.5 feet for the S2. Your actual result depends on lift, pipe diameter, fittings, branches, and the flow allocated to a manifold.

Vectra S2 vs. M2 vs. L2 at a glance

Maximum flow and maximum head describe different ends of pump operation. The advertised maximum flow is not a promise that the same volume will arrive at the display after being lifted through a complete return line. Maximum head identifies the lift limit, not useful flow at that limit. Because the supplied specifications do not provide every intermediate operating point, the headline GPH number should be treated as a starting point rather than the finished answer.

Why there is no reliable universal tank-size chart

Two aquariums with the same water volume can place very different loads on a return pump. A sump directly below the display with a short, generously sized return is not equivalent to a remote sump connected by a long run. Extra elbows, restrictive pipe, multiple outlets, valves, and manifold branches all change the operating resistance.

A tank-size chart also risks confusing return turnover with total display circulation. The return pump moves water between the sump and display. Dedicated circulation pumps or a closed loop can provide additional movement inside the display. Increasing sump turnover is therefore not automatically a substitute for planning circulation around rockwork and coral placement.

The practical question is not, “Which Vectra matches my tank gallons?” It is, “Which Vectra can supply my intended return flow through this specific route while retaining reasonable adjustment range?” That framing accommodates unusual stand heights, basement sumps, split returns, and future manifold plans without pretending every installation is identical.

A practical head-loss workflow

1. Define the return system’s job

Start by deciding what the return pump must supply. At minimum, that means the desired flow from the sump back to the display. If the return line will also feed equipment or another outlet through a manifold, those branches belong in the same plan.

Express the display-to-sump goal as an actual flow target rather than choosing a pump from its maximum rating. Turnover is simply a way to relate that return flow to system volume, but the desired number remains a system-design choice. It must coexist with the overflow, sump behavior, plumbing, noise preference, and any equipment receiving water from the return circuit. There is no single turnover value in the supplied Vectra specifications that applies to every reef.

2. Measure vertical lift correctly

Map the vertical rise from the operating water level at the pump’s source to the return discharge point. This is the static-lift component of the job. Do not substitute the pump’s maximum-head number for this measurement. The S2 is rated for 11.5 feet of maximum head, while the M2 and L2 are rated for 21.5 feet, but a pump approaching its maximum head is not simultaneously delivering its maximum GPH.

Vertical lift is only the first filter. If a proposed installation is too close to a model’s maximum-head limit, the larger headline flow number does not create dependable operating margin. That is an especially important distinction when comparing the 1,400 GPH S2 with the 2,000 GPH M2: the M2 adds both flow capacity and a substantially higher maximum-head rating.

3. Trace the complete plumbing route

Sketch the route from pump intake to the final return outlets. Record the straight pipe, changes in direction, valves, unions, reducers, tees, split returns, and manifold takeoffs. These components add resistance beyond vertical lift. A compact line with few transitions presents a different duty than a long route containing repeated bends and branches, even when both displays sit at the same height.

Do not count only dramatic fittings. Several ordinary direction changes can matter collectively, and a tee that divides flow also changes what reaches each destination. The goal is not to assign an invented GPH penalty to every fitting. It is to avoid treating a complicated installation as though it were an open, straight discharge.

4. Account for pipe diameter

Pipe diameter is part of pump selection, not a detail to address afterward. Smaller plumbing generally presents more resistance at a given flow than a larger route. Each Vectra is supplied around a different connection size: the S2 uses a 1-inch input and 0.75-inch output, the M2 uses a 1.25-inch input and 1-inch output, and the L2 uses a 1.5-inch input and 1.25-inch output. The fittings are compatible with standard PVC.

A larger model attached immediately to restrictive plumbing does not receive the same advantage it would have on a route planned around its connection sizes. Conversely, changing models may require more cabinet space and plumbing adaptation. Compare the whole route—including bulkheads and return nozzles—rather than looking only at the fitting mounted directly on the pump.

5. Add manifold demand explicitly

A manifold does not provide free flow. Every open branch takes a portion of the pump’s output and adds fittings to the system. List each planned branch separately, decide whether it must run at the same time as the display return, and include that demand in the pump decision. A manifold with unused, closed ports is different from one continuously feeding several destinations.

This is one reason the M2 or L2 may be appropriate even when the display return alone appears compatible with the S2. The larger model is not being selected from aquarium volume; it is being selected because the pump has more work to perform. If branch requirements are uncertain or likely to change, preserve adjustment room rather than sizing exactly to an optimistic estimate.

6. Preserve operating headroom

Headroom means selecting enough capacity that the target flow does not depend on operating at the edge of the pump’s published limits. It accommodates real plumbing resistance, additional open manifold branches, and normal adjustment. Headroom is useful, but oversizing without a plan has trade-offs: the larger pumps cost more, use larger power supplies, require more space, and may call for larger plumbing.

The variable-speed Vectra design lets flow be adjusted through the controller instead of relying on a choke valve as the primary control method. That makes moderate headroom practical. It does not mean the largest model is automatically best. The ideal selection keeps the target within a useful control range while fitting the sump and plumbing layout.

7. Verify the physical installation

Check the pump chamber and service clearance before buying. The S2 has the smallest 3.8-by-6.5-inch footprint. The M2 increases that to 4.5 by 7.5 inches, and the L2 occupies 5 by 8.5 inches. Space is also needed to disconnect the QuickCouple fittings and remove the pump for cleaning.

All three models use a sealed magnetic-drive motor and can operate submerged or inline externally. Their volutes can be rotated to help align the outlet with the plumbing. That flexibility can simplify a layout, but it does not eliminate the need to confirm connection sizes, pipe routing, controller placement, and access before assembly.

When each Vectra makes sense

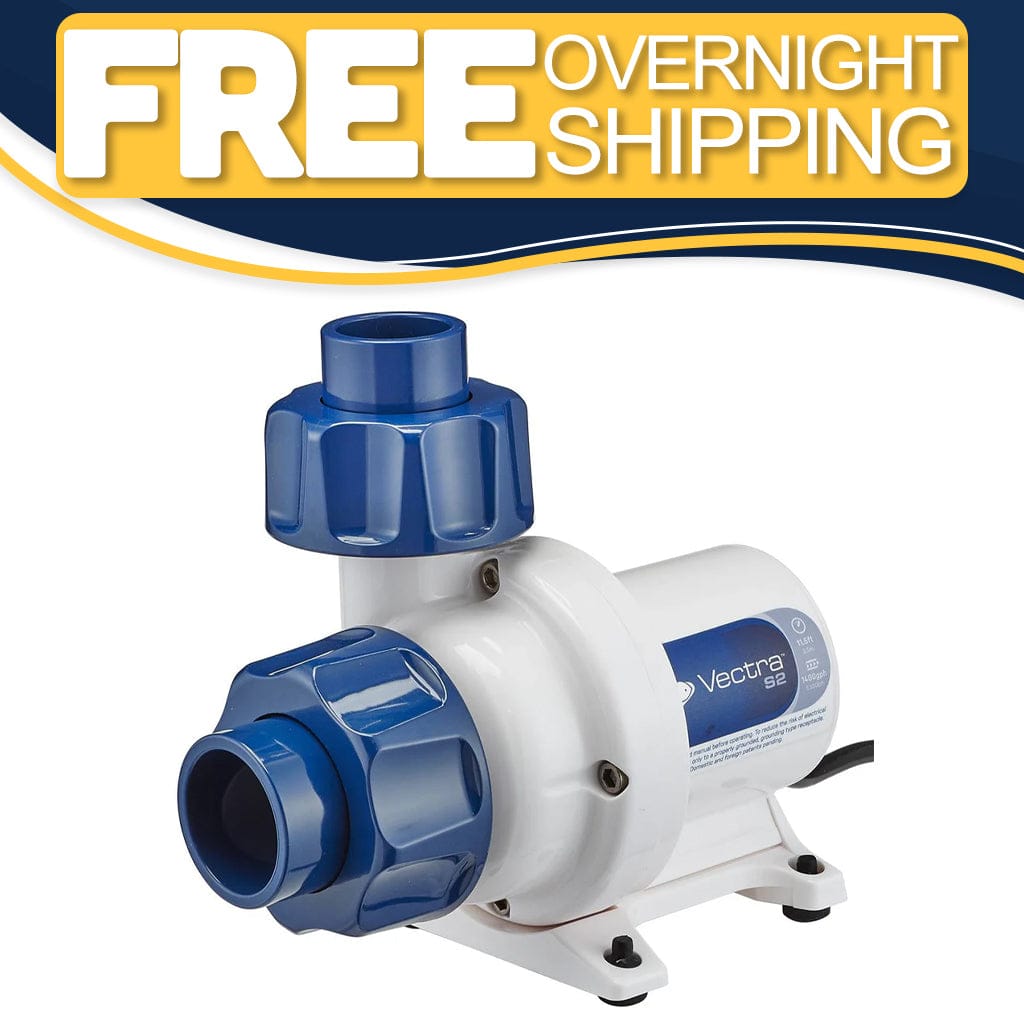

Choose the Vectra S2 for compact, lower-demand routes

The S2 is the logical starting point when the planned return remains comfortably within its 1,400 GPH maximum-flow and 11.5-foot maximum-head envelope. Its smaller footprint, 72W power supply, 1-inch intake, and 0.75-inch outlet suit installations designed around those dimensions. It is most compelling when the route is relatively direct, manifold demand is limited, and cabinet space matters.

Do not choose it merely because it is the smallest model. Tall lift, restrictive plumbing, or multiple active branches can consume the margin suggested by the open-flow rating. If the design approaches the S2’s head limit or depends on its top output, reassess the route or step up rather than assuming 1,400 GPH will reach the display.

Choose the Vectra M2 for a broader operating envelope

The M2 occupies the middle position with up to 2,000 GPH, 21.5 feet of maximum head, a 96W power supply, and larger 1.25-inch input and 1-inch output fittings. It offers considerably more head capability than the S2 without requiring the L2’s footprint or 1.5-inch intake.

That balance makes the M2 the comparison point for systems with more lift, a longer or more complicated return, a split outlet, or moderate manifold plans. It can also be the better fit when the calculated requirement is near the S2’s limits but does not justify the L2’s 3,100 GPH capacity. Physical fit still matters: the M2 is longer and wider than the S2 and should be planned around its larger connections.

Choose the Vectra L2 for high flow or substantial shared demand

The L2 provides the highest capacity in this comparison at 3,100 GPH. It shares the M2’s 21.5-foot maximum-head rating but moves to a 150W power supply, 1.5-inch input, 1.25-inch output, and the largest footprint. It is the appropriate candidate when the required operating flow exceeds the M2’s useful range or when a return circuit must support substantial simultaneous manifold demand.

The L2 is not automatically superior on a simple, low-flow return. Its value depends on using the additional capacity and accommodating its plumbing and space requirements. If a restrictive route remains unchanged, installing the biggest pump may be less sensible than improving the plumbing design and selecting the model that matches the resulting duty.

Shared controls and installation features

The three pumps share the core Vectra platform. Each includes a QuietDrive controller, power supply, mounting bracket, input and output QuickCouple components, and an instructional manual. Flow is adjustable, and the controller offers Feed Mode. Return-pump configuration includes calibration and Speed Lock, while closed-loop configuration provides random and pulsing modes.

Mobius connectivity is built in, allowing direct programming from an iOS or Android device without extra bridge hardware. The pumps are also compatible with Neptune Apex through MXM. EcoTech Battery Backup compatibility is listed for all three, although actual backup duration is not fixed and will vary with factors including battery condition and pump mode.

Closed-loop capability should not be confused with a sump return calculation. A closed loop recirculates water through its own intake and outlets, while a return pump lifts water from the sump to the display. The same Vectra can be configured for either role, but the plumbing duty and operating mode must be planned accordingly.

Common sizing mistakes to avoid

• Buying from maximum GPH alone: open-flow output does not describe delivery after lift and plumbing resistance.
• Treating maximum head as a working flow rating: maximum head is a limit, not a promise of the advertised maximum GPH at that height.
• Ignoring the full pipe route: elbows, tees, valves, reducers, bulkheads, branches, and outlets affect the operating load.
• Leaving manifold flow out of the calculation: active branches share the pump’s available output with the display return.
• Using tank volume as the only input: identical aquarium volumes can have different lift, plumbing, and turnover goals.
• Choosing excessive capacity without checking fit: the M2 and L2 require progressively larger footprints, fittings, and power supplies.
• Eliminating all headroom: a design that works only at a published limit leaves little adjustment range.
• Confusing return turnover with display circulation: the return circuit and in-tank flow have related but distinct jobs.

Final selection rule

Choose the smallest Vectra that can deliver the intended operating return flow through the measured lift, complete plumbing route, and simultaneously active manifold branches while retaining useful adjustment room. The S2 favors compact and less demanding installations; the M2 adds flow, larger connections, and much more maximum head; the L2 supplies the greatest flow capacity for demanding returns or shared plumbing.

If two models remain plausible, let the actual constraints decide: available sump space, pipe diameter, service access, manifold expansion, lift, and preferred operating headroom. That process produces a defensible pump choice without relying on a universal tank-size chart that cannot represent every reef system.
