VorTech Battery Back-Up - EcoTech Marine

A power outage becomes a livestock problem when circulation stops. The supplied EcoTech Marine information warns that fish and corals can begin to die within four to ten hours in an aquarium with no flow. The VorTech Battery Back-Up is designed to preserve that flow automatically when normal power is interrupted. Rather than attempting to operate every device on the aquarium, it supports compatible EcoTech pumps so water continues moving through the outage. For an aquarist already using VorTech equipment, this creates a focused backup plan centered on maintaining circulation during the period when the main electrical supply is unavailable.

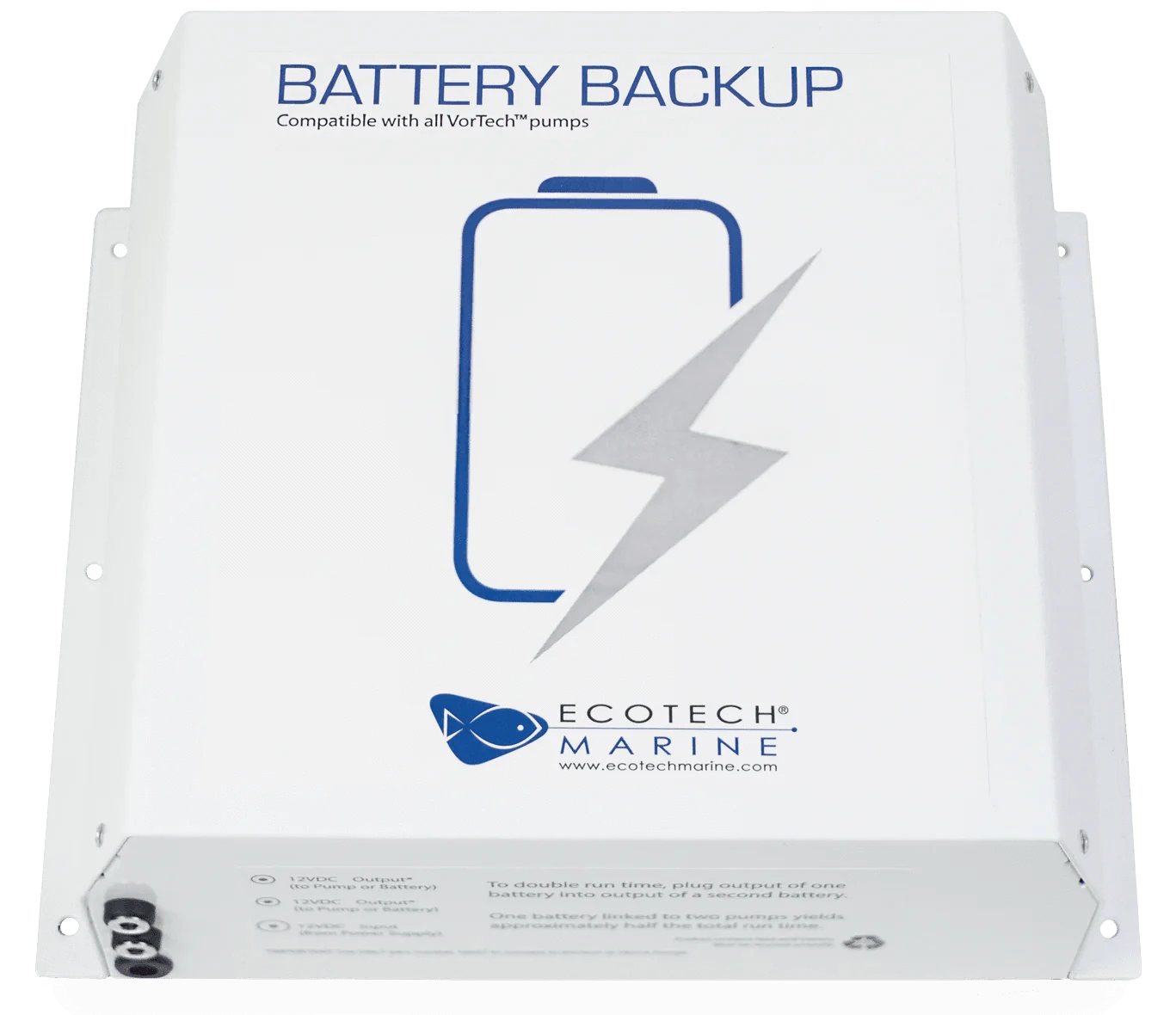

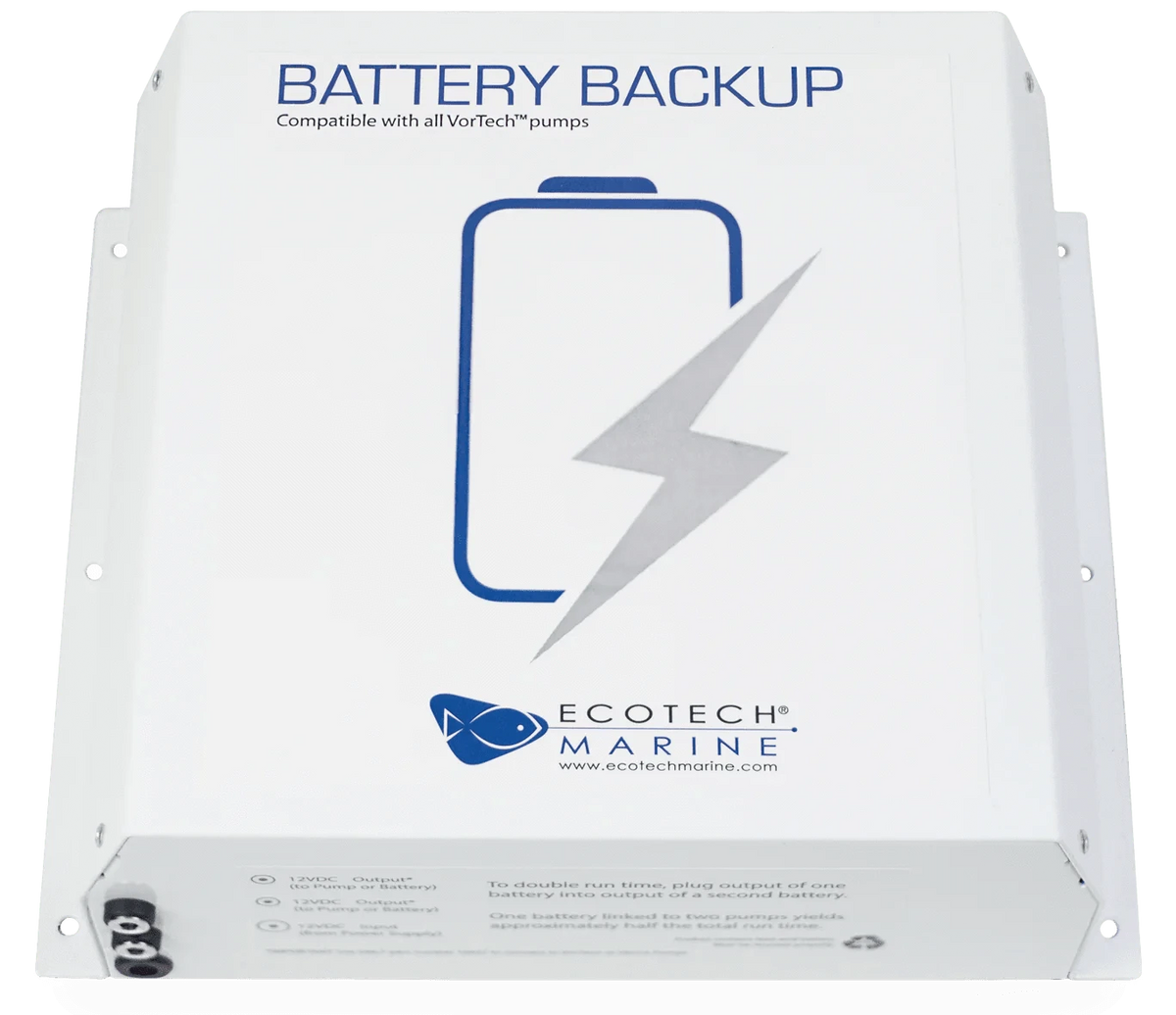

The unit contains an 18 Amp-Hour, 12-volt sealed battery inside a powder-coated white aluminum housing. It connects to compatible pump equipment and remains supported by the included trickle charger between outages. When mains power is lost, the backup is intended to activate automatically rather than waiting for someone to discover the outage and connect emergency equipment. That automatic transition is particularly relevant when the aquarium is unattended. The system does not require a whole-aquarium backup configuration to keep a supported circulation pump operating, although the supplied information does not claim that it powers unrelated aquarium devices.

The specifically identified VorTech pumps are the MP10, MP20, and MP40w. Model choice matters because the published maximum runtime is not the same across those pumps. The supplied specifications list up to 72 hours for an MP10 or MP20 on one Battery Back-Up and up to 36 hours for an MP40w. These model-specific figures are more useful for planning than treating the product as if it had one universal runtime. Aquarists using a VorTech model not expressly named in the supplied record should verify compatibility separately rather than assuming that every pump carrying the VorTech name has the same connection or runtime.

EcoTech publishes model-specific maximum estimates of up to 72 hours for the MP10 and MP20, up to 36 hours for the MP40w, and up to 30 hours when supporting two pumps. Treat these as manufacturer estimates rather than fixed promises. The supplied information does not provide one standardized runtime or a detailed test method for every pump arrangement.

The runtime variables documented in the supplied information are the connected pump model, whether one or two pumps are being supported, and whether one or two Battery Back-Up units are used. An MP40w has a lower stated maximum runtime than an MP10 or MP20. A two-pump configuration is listed at up to 30 hours from one unit. Connecting a second Battery Back-Up is stated to double the available runtime. The record does not quantify the effects of battery age, operating settings, or environmental conditions, so an aquarist should not assign unsupported adjustments to the published figures when planning outage coverage.

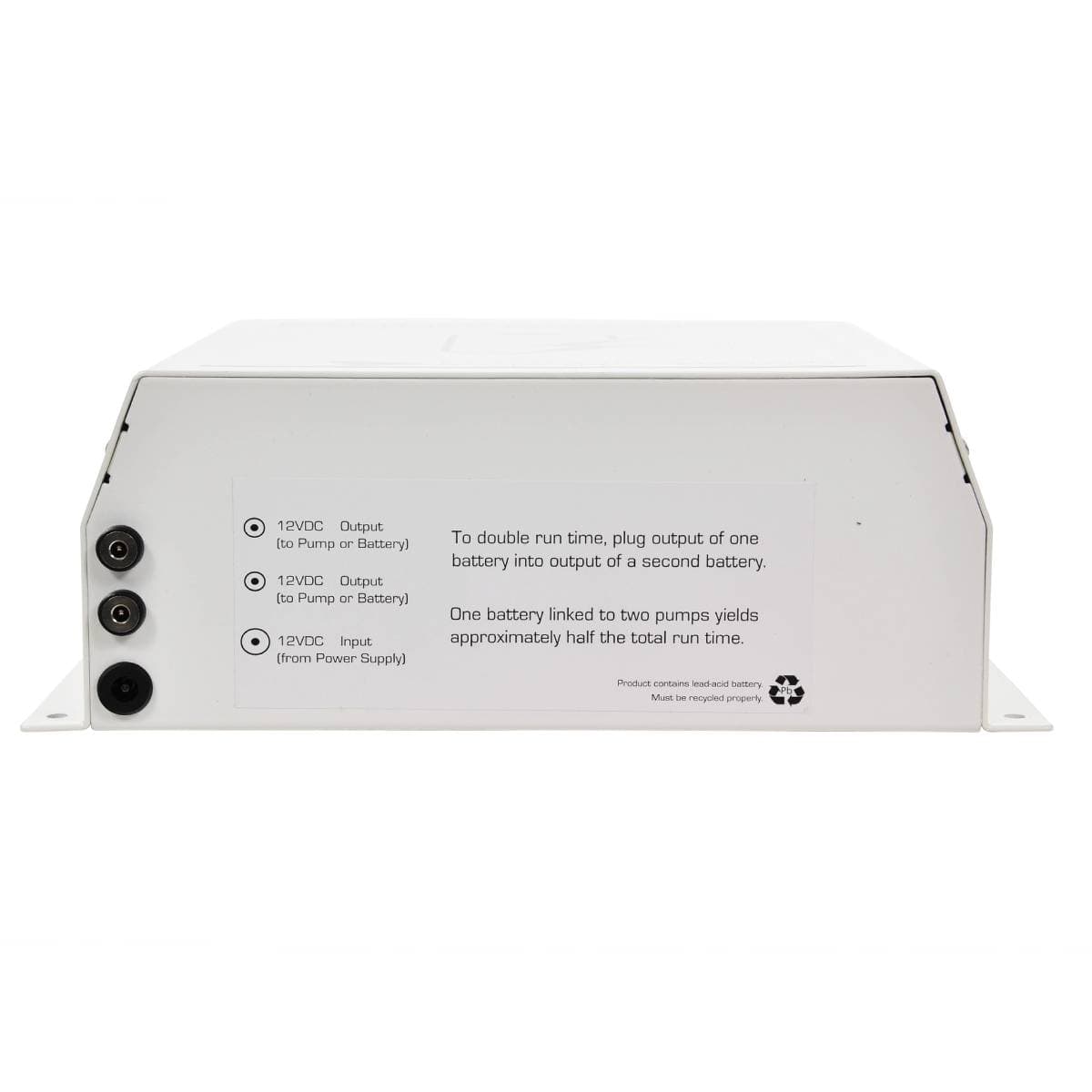

It is important to distinguish adding a second pump from adding a second battery. Supporting two pumps increases the electrical load, and EcoTech lists up to 30 hours for that arrangement with one Battery Back-Up. Connecting another Battery Back-Up increases stored capacity, with the supplied information stating that two units provide twice the runtime. This modular approach lets an EcoTech-based circulation plan be expanded without changing the basic backup format. However, the record does not provide a complete table covering every combination of pump models, pump quantities, and paired batteries, so mixed or more complex installations require additional confirmation.

The Battery Back-Up can also be used with EcoTech Vectra return pumps, but a Vectra installation has an additional requirement: the EcoTech Vectra Battery Booster Cable. That cable is required for operation and is sold separately. The statement that all necessary wiring cables are included therefore applies to the standard VorTech package, not to a Vectra conversion. The supplied record does not identify individual Vectra models or publish a Vectra runtime. Aquarists planning to preserve return-pump circulation should confirm their specific Vectra configuration and obtain the Booster Cable rather than expecting the included VorTech wiring alone to complete the connection.

For outage planning, the principal function is continued water movement. That circulation is relevant when the normal pumps have stopped and the aquarium is entering the four-to-ten-hour no-flow window identified in the product information. The Battery Back-Up should consequently be evaluated by which supported pump will remain active and where that pump normally moves water. The source does not provide a measured oxygenation rate or promise that every area of an aquarium will receive identical circulation. It also does not provide livestock-specific survival times beyond the general warning about fish and corals in a system without flow.

Physical planning is straightforward because the enclosure dimensions are supplied. The Battery Back-Up measures 9 inches long by 7 inches wide by 3.25 inches high, equivalent to 228 by 177 by 82.5 millimeters. Its sealed 12-volt battery is housed in powder-coated white aluminum. These dimensions should be checked against the intended equipment area before installation, especially if a second unit may later be added to double runtime. The source does not state a required mounting orientation, clearance, or environmental rating, so those details should not be assumed from the aluminum construction alone.

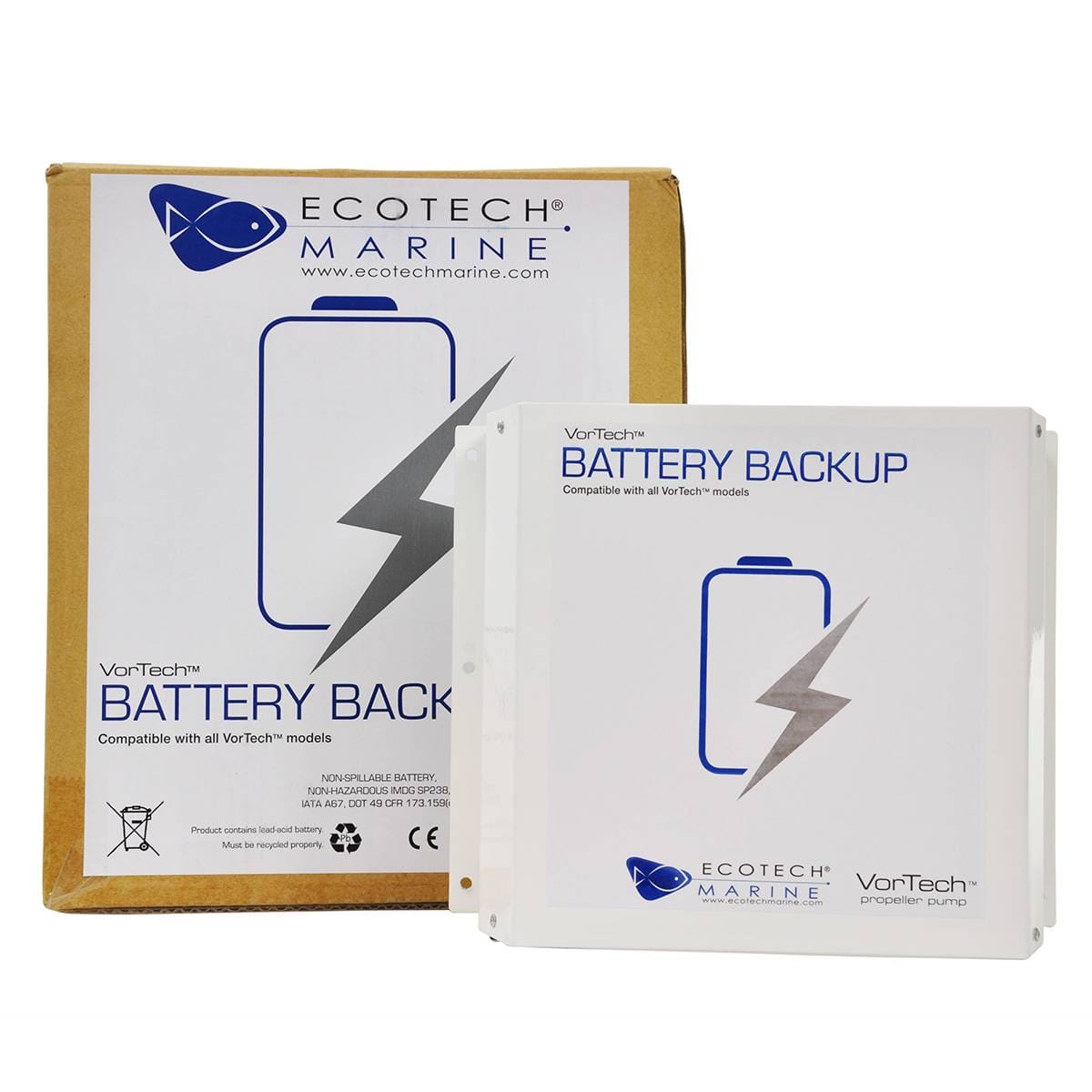

The complete package includes the Battery Back-Up, an integrated 18 Amp-Hour sealed battery, a trickle charger, and the wiring cables needed for the standard VorTech application. The charger is intended to keep the battery charged between outages so the backup remains prepared. No separately sourced wiring is described as necessary for the named VorTech pumps. Vectra users are the exception because their setup requires the separately sold Battery Booster Cable. The supplied record does not list replacement battery components, mounting hardware, monitoring accessories, or a Vectra Booster Cable as included package contents.

A cautious functional test should be limited to confirming the behavior the product is designed to provide. With the Battery Back-Up connected, charged through its trickle charger, and wired to a compatible pump, briefly interrupt normal power to that pump and observe whether circulation continues from battery power. Restore normal power after confirming the transition. The supplied information does not provide a manufacturer test interval, a prescribed full-discharge procedure, or a target measured runtime for periodic testing. For that reason, a brief controlled check is more directly supported than deliberately exhausting the battery merely to reproduce the maximum advertised duration.

Battery care centers on the included trickle charger. Its stated purpose is to maintain charge so the system is ready when an outage occurs. A controlled activation check can also reveal whether the pump changes to backup operation, but a short check cannot prove that an aging unit will still reach its original maximum runtime. EcoTech does not provide a replacement interval, expected service life, capacity threshold, or user replacement procedure in the supplied record. Replacement timing therefore cannot be determined from a calendar date on this information alone, and the published runtime figures should not be treated as a permanent measurement of battery condition.

This model is best suited to an outage plan built around the specifically named VorTech pumps or a compatible Vectra installation equipped with the required Booster Cable. Its main planning advantages are automatic activation, model-specific published runtime guidance, an included maintenance charger, and the ability to link a second battery for twice the runtime. The important limitations are equally clear: maximum duration varies by configuration, Vectra runtime is not stated, the Booster Cable is not included, and no battery replacement schedule is supplied. Those boundaries allow an experienced aquarist to choose coverage without assuming support, duration, or maintenance requirements that EcoTech has not documented here.
