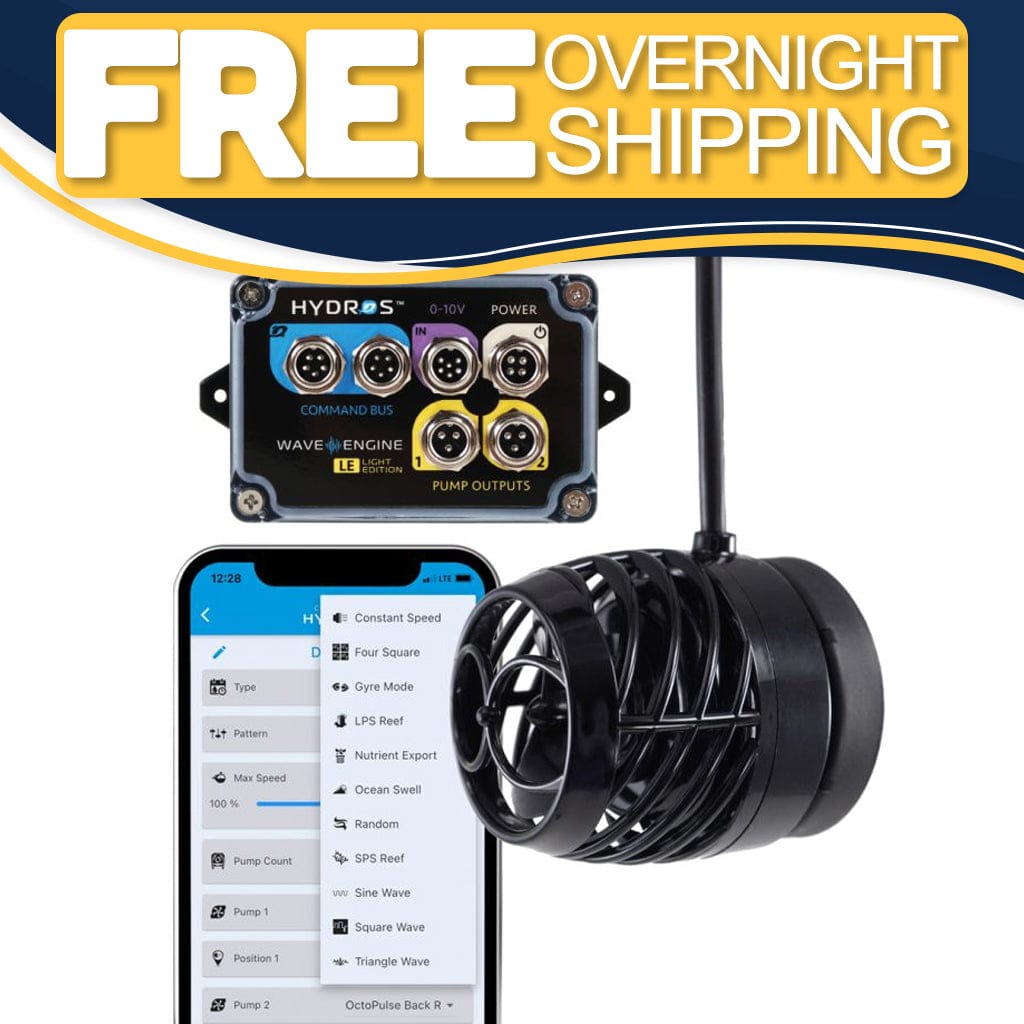

Octo Pulse 4 Wave Pump with HYDROS WaveEngine LE Controller

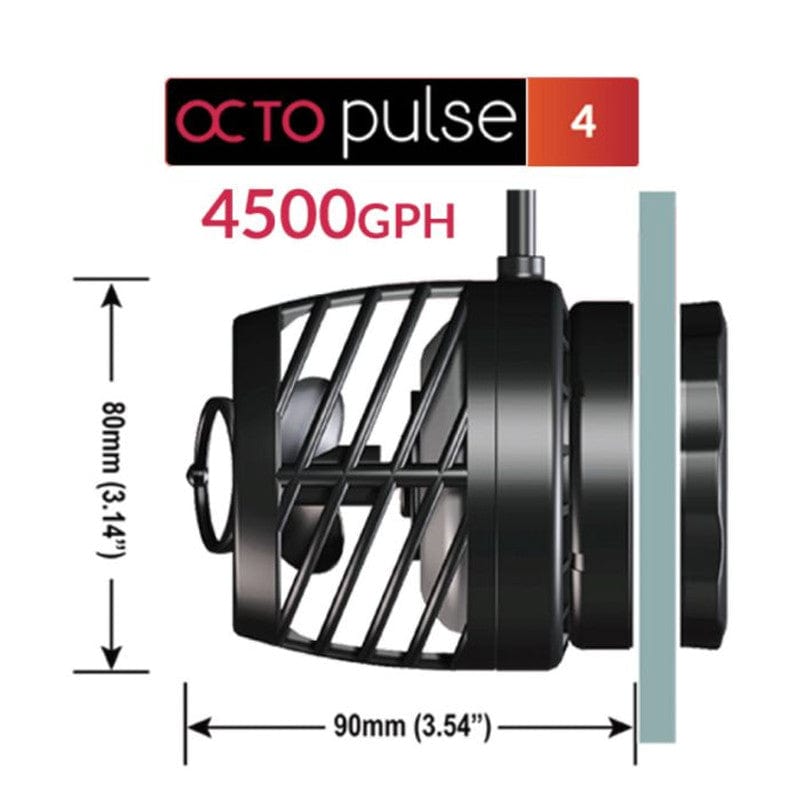

Max flow: 4,500 GPH | Power: 11–32 W | Tank size: 80–500+ gallons
Includes: Octo Pulse 4 pump with magnetic mount, HYDROS WaveEngine LE controller and power supply.
Mount fits glass or acrylic aquariums up to 5/8 in. thick.
Massive water movement
The Octo Pulse 4 is a fully controllable flow pump that moves up to 4,500 GPH and draws no more than 32 watts. Its broad flow encourages coral growth instead of blasting corals with the harmful "hot spots" associated with other wave pumps.
Direct flow where you need it most
The 360° magnetic mount lets you aim the Octo Pulse precisely. The rear of the pump has a convex, rounded shape that sits in a concave mounting magnet, so the pump can gyrate in any direction. The low-profile mount offers a 25° range of motion, and the whole pump rotates 360°.
Octo Pulse pump features
- 360° range of adjustment
- Articulating magnetic mount
- Strong rare-earth magnet impeller
- Compact, durable construction
- Silent operation
- Waterproof magnet mounts
- HYDROS WaveEngine and WaveEngine LE Direct Drive compatible
- 2-year limited warranty on the pump

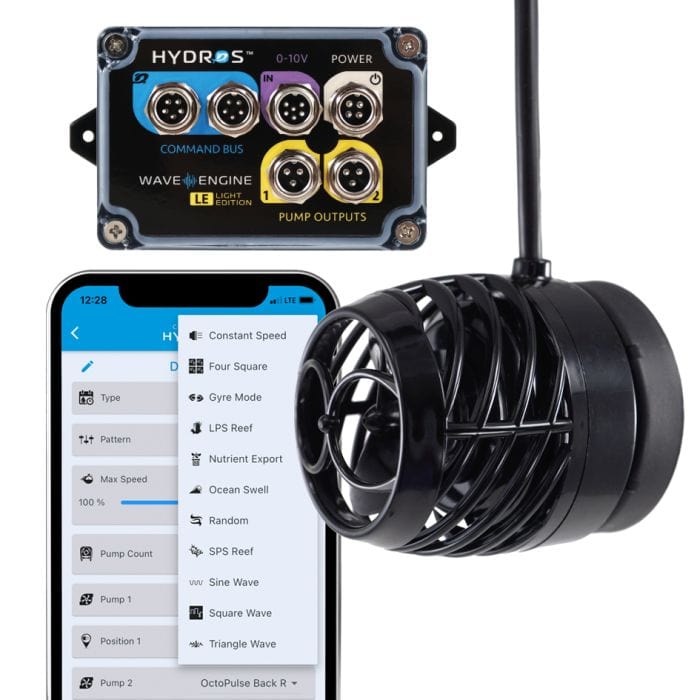

HYDROS WaveEngine LE: app-based dual pump control
The WaveEngine LE ("Light Edition") connects directly to the pump head, so you don't need a separate pump controller or power brick. Connect up to two pumps, set the minimum and maximum speed for each, and run them together in presets such as sync, anti-sync, triangle wave, square wave and sine wave from the HYDROS app.
- Create multiple pump groups
- Feed, Water Change and Night modes
- Monitor volts, amps and watts for each pump and for all pumps combined
- Monitor pump RPM
- Cloud connectivity, so you can control your pumps from anywhere
- Real-time notifications of system status and pump performance
- Custom flow patterns of any duration up to 24 hours, with 1/1000-second accuracy
- 0-10V input to receive commands from other devices, including push buttons and float switches
- Powers up to 2 pumps from the Direct Drive ports using a single 100/240 V, 4 A input power supply (included); output is 24 V / 6 A
Direct Drive compatible pumps
- Reef Octopus RODC-2500, 3500 and 5500, VarioS-2 and VarioS-4, Octo Pulse 2 and Octo Pulse 4
- IceCap Gyre 1K, 2K, 3K and 4K
- Maxspect Gyre XF-130/230, XF-150/250, XF-330/350 and XF-280*
*Maxspect Gyre XF-280 pumps can only run at 75% max intensity.
Adding a second pump? Each additional pump needs the appropriate adapter or 0-10V cable (sold separately), such as the HYDROS Direct Drive Reef Octopus VarioS/Octo Pulse adapter.
Octo Pulse 2 vs Octo Pulse 4: which version do you need?
Reef Octopus sells the Octo Pulse (often searched as "OctoPulse") in two sizes and three packages. Pick the size for your tank, then pick how you want to power and control it.
| Size | Max flow | Power | Tank size | Glass or acrylic up to |
|---|---|---|---|---|
| Octo Pulse 2 | 1,600 GPH | 5–10 W | 20–80+ gallons | 1/2 in |
| Octo Pulse 4 | 4,500 GPH | 11–32 W | 80–500+ gallons | 5/8 in |
| Package | In the box | Control | Octo Pulse 2 | Octo Pulse 4 |
|---|---|---|---|---|
| Pump Only | Pump and magnetic mount. No controller or power supply. | Runs from a HYDROS WaveEngine or WaveEngine LE with the Direct Drive adapter (sold separately) | Octo Pulse 2 Pump Only | Octo Pulse 4 Pump Only |

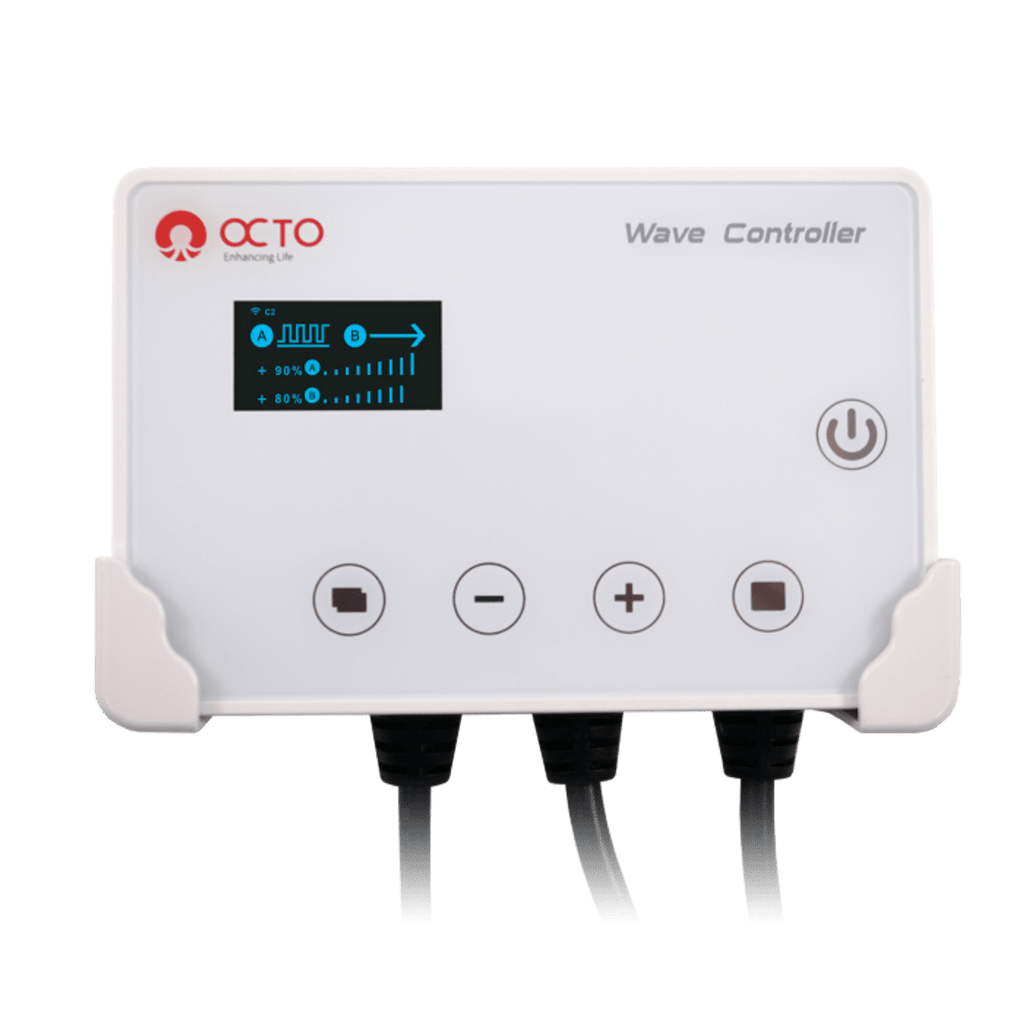

| + (Plus) kit | Pump, power supply and Octo Pulse WiFi Controller with mounting cradle | OCTO app or onboard buttons, 4 preset flow patterns, 0-10V input | Octo Pulse 2+ | Octo Pulse 4+ |
| WaveEngine LE bundle | Pump, HYDROS WaveEngine LE controller and power supply | HYDROS app, drives up to 2 pumps | Octo Pulse 2 + WaveEngine LE | Octo Pulse 4 + WaveEngine LE (this page) |
Already run a HYDROS WaveEngine or WaveEngine LE? The Pump Only version costs less and plugs straight in with the adapter. Starting from scratch? The + kit is ready to run out of the box, and the WaveEngine LE bundle suits reefers who want to run pumps from different brands in one app. Compare every model in Reef Octopus powerheads.
Expert buying guidance
Octo Pulse 4 Wave Pump with WaveEngine LE Controller FAQs
What comes with the Octo Pulse 4 and WaveEngine LE bundle?
The Octo Pulse 4 pump with its magnetic mount, the HYDROS WaveEngine LE controller and the power supply.
How many pumps can the WaveEngine LE run?
Up to two, from the Direct Drive ports on one 100/240 V power supply with a 24 V / 6 A output. A second pump needs the appropriate adapter or 0-10V cable, sold separately.
Which pumps work with the WaveEngine LE Direct Drive?
Reef Octopus RODC-2500, 3500 and 5500, VarioS-2 and VarioS-4, and Octo Pulse 2 and 4; IceCap Gyre 1K, 2K, 3K and 4K; and Maxspect Gyre XF-130/230, XF-150/250, XF-330/350 and XF-280 (the XF-280 at up to 75% intensity).
Octo Pulse 4 + WaveEngine LE or Octo Pulse 4+?
Both run the same pump. The 4+ kit uses the Octo Pulse WiFi Controller and OCTO app with 4 preset flow patterns. The WaveEngine LE bundle uses the HYDROS app, with custom patterns up to 24 hours long, pump groups, Feed, Water Change and Night modes, and power monitoring, and it can run pumps from other brands.
