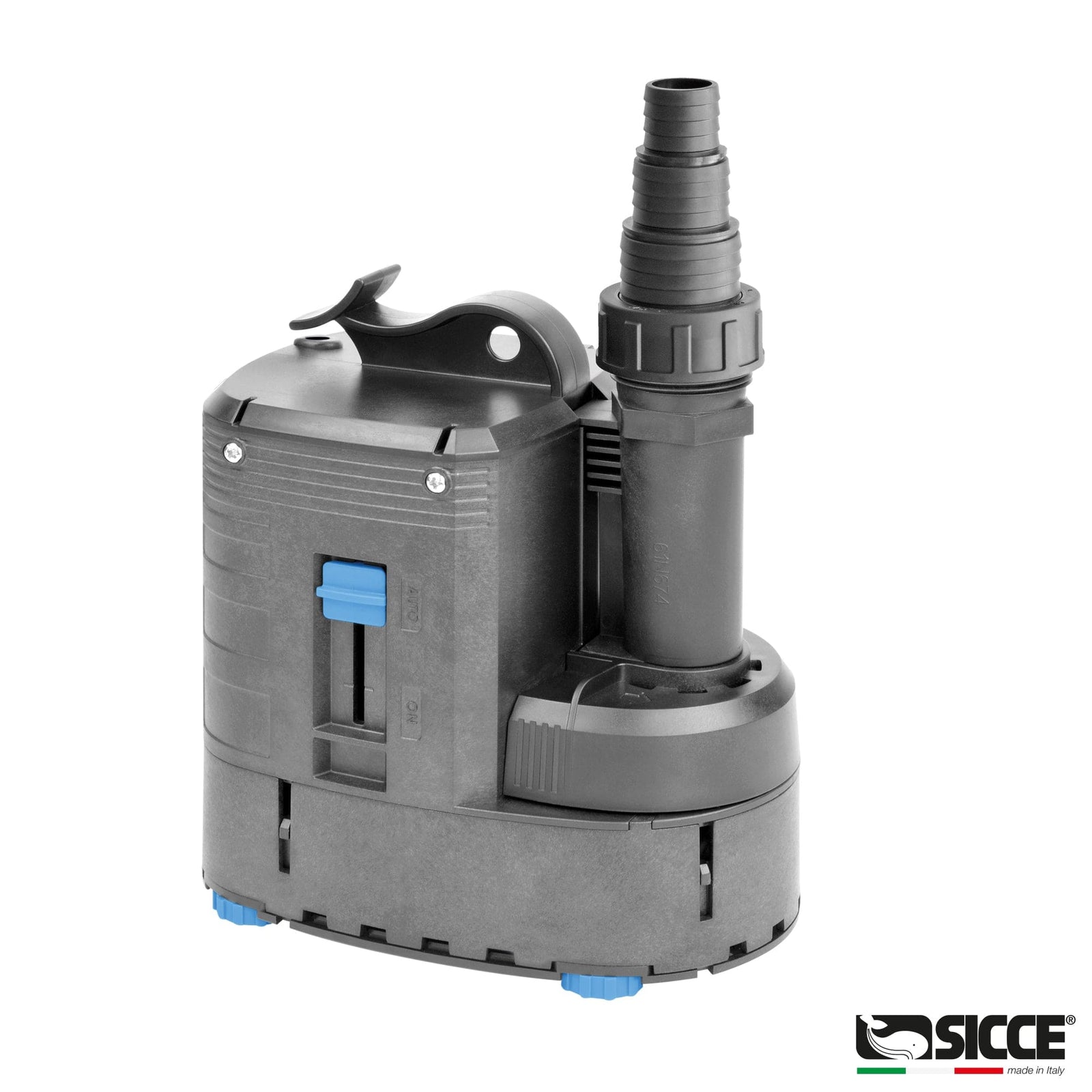

ULTRA 9000 Utility Pump (2245 gph) - Sicce
ULTRA 9000 Utility Pump (2245 gph) - Sicce
Goes well with:
Sicce Ultra 9000 Water Pump, 2250 gph
Key Features:
1. Advanced Technology: Equipped with state-of-the-art engineering, the Ultra 9000 delivers unparalleled efficiency and performance, ensuring rapid drainage with minimal energy consumption. The Ultra 9000 features an integrated safety float switch, adjustable feet to regulate size of intake, drainage capacity down to 5mm, a convenient carry handle, and simple side access for maintenance, drawing only 110 watts of power.
2. Enhanced Design: Sleek and compact, the Ultra 9000 is designed for easy installation and maintenance, making it ideal for a wide range of applications, specific to drainage and transfer of water.
3. Quiet Operation: Engineered for silence, the Ultra 9000 operates with whisper-quiet precision, providing efficient drainage without disturbing surroundings.
4. Durable Construction: Crafted from high-quality materials, the Ultra 9000 is built to withstand the rigors of continuous operation, ensuring years of reliable service, supported by Sicce’s exclusive 5-year warranty.
5. Versatile Applications: From residential basements to commercial facilities, the Ultra 9000 is the perfect solution for any drainage need.
- Practical and compact.
- Ideal for stormwater applications, flooded areas, industrial processes and DIY uses.
- Integrated automatic float switch.
- ADJUSTABLE INTAKE to control drainage height.
- Stable and constant pressure.
- AUTO SHUT OFF IN CASE OF: Blocked rotor, lack of water and thermal overload.
Key Features
|
|
ULTRA 9000 |
|
Power |
110 W - 0.15 CV |
|
Maximum flow rate |
8500 l/h • 2250 US gph |
|
Maximum head |
6,5 m (0.65 bar) • 21.5 ft (9.5 psi) |
|
Material housing |
ABS + GF |
|
Protection class |
IPX8 |
|
Area of application |
Outdoor, indoor |
|
Cable length |
10,0 m • 20.0 ft |
|
Max. immersion depth 7 m (US version: 16.4 ft). |
|
|
Solid handling up to 8 mm. |
|
Overview
Drain. Transfer. Automate.
The ULTRA 9000 is a submersible utility pump built for high-volume drainage and water transfer. Here is what makes it a practical workhorse.
Integrated Float Switch
- Automatic start and shutoff based on water level
- Enables unattended operation in sump pits and flood-prone areas
- Eliminates the need for external controllers or timers
Protective Auto-Shutoff
- Shuts down automatically on blocked rotor, dry-run, or thermal overload
- Prevents motor damage during real-world drainage conditions
- Allows safe deployment in unmonitored environments
Versatile Drainage Design
- Adjustable intake feet set drainage height to suit the application
- Drains down to within 5 mm of the floor surface
- Handles solids up to 8 mm; rotatable outlet fits common hose sizes
Features

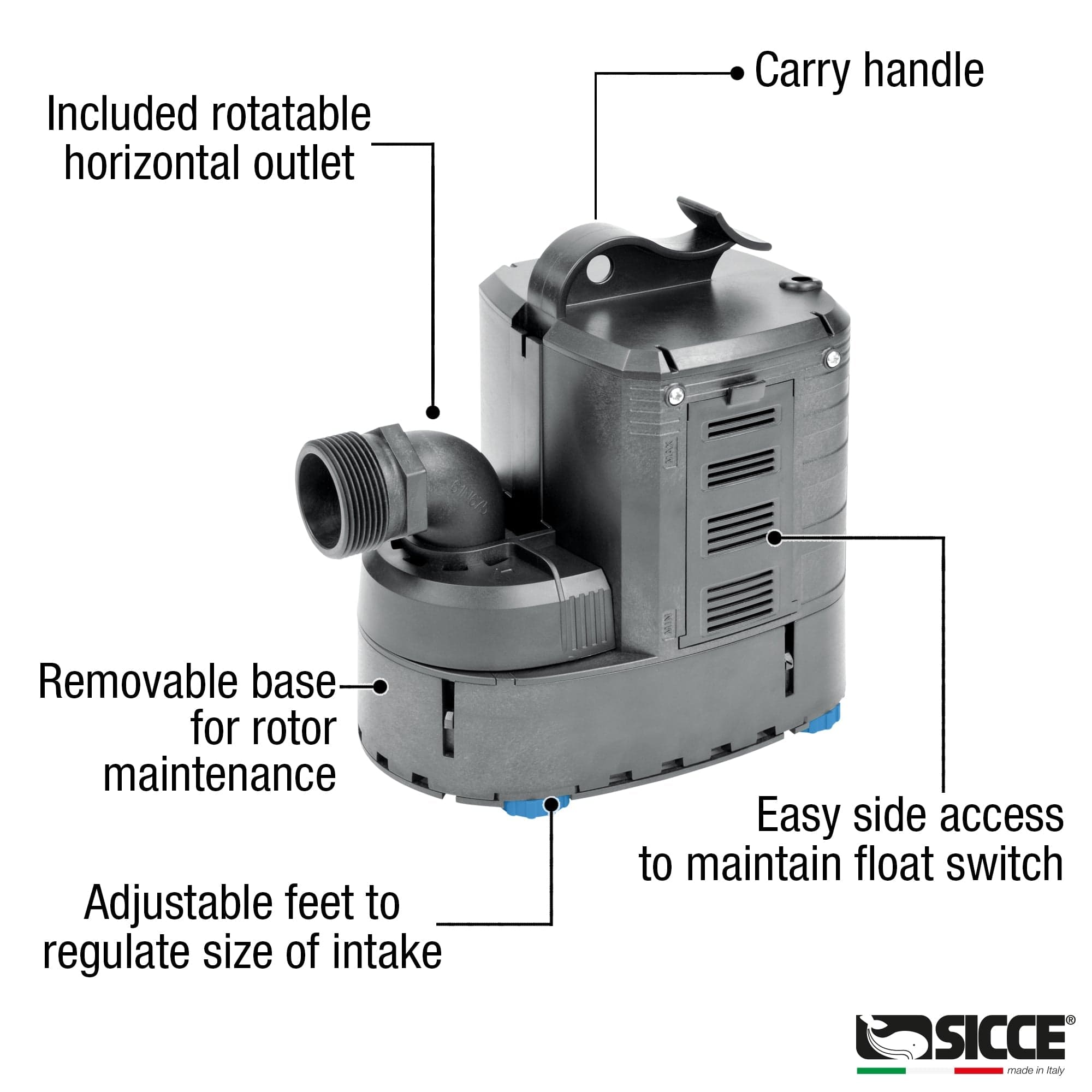

Labeled Component Overview
A labeled diagram identifies the key external features of the ULTRA 9000, including the carry handle, rotatable outlet, float switch, and side-access maintenance panel.

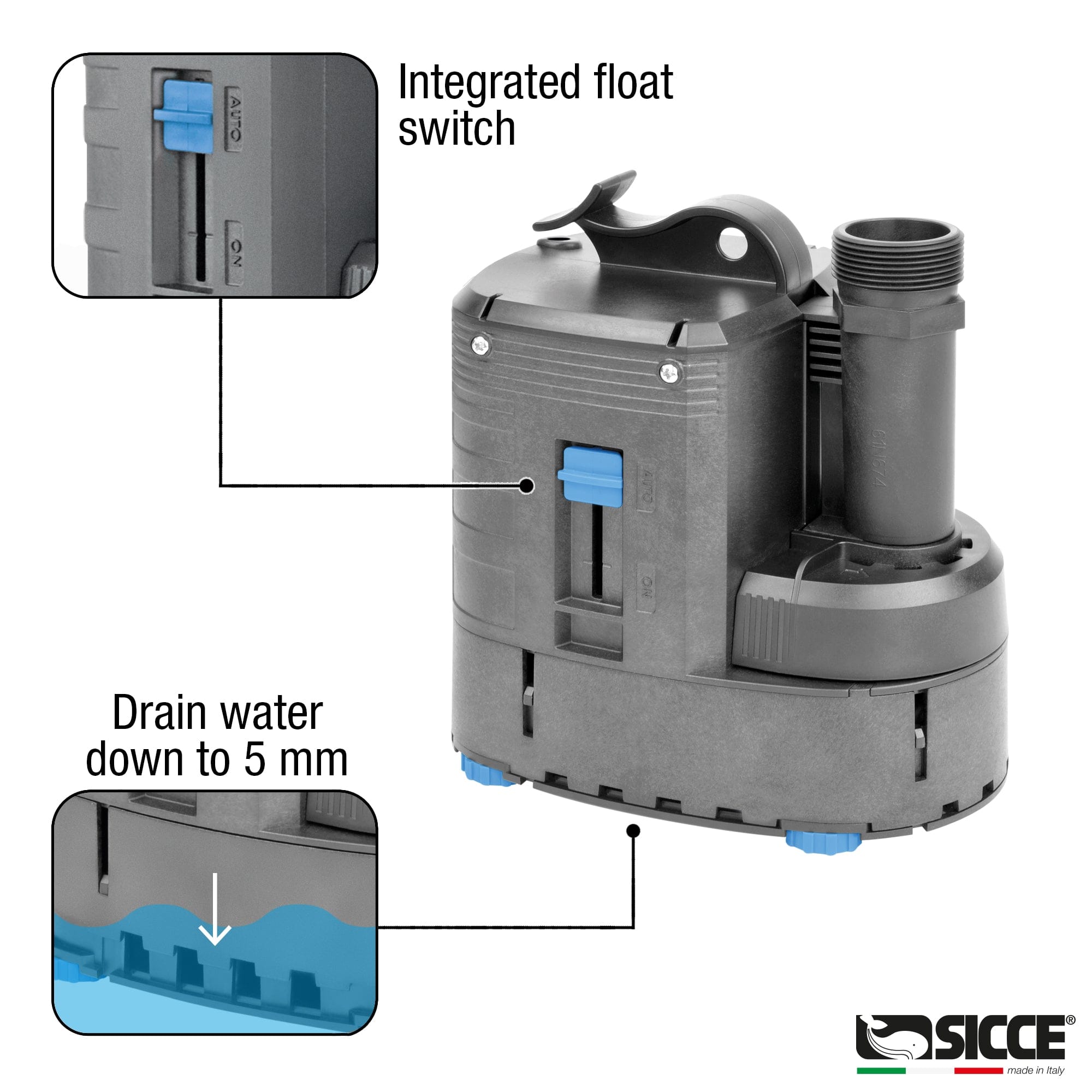

Float Switch and 5mm Drain Depth
This diagram highlights the integrated automatic float switch and the adjustable intake feet that allow the pump to evacuate water down to within 5 mm of the floor.

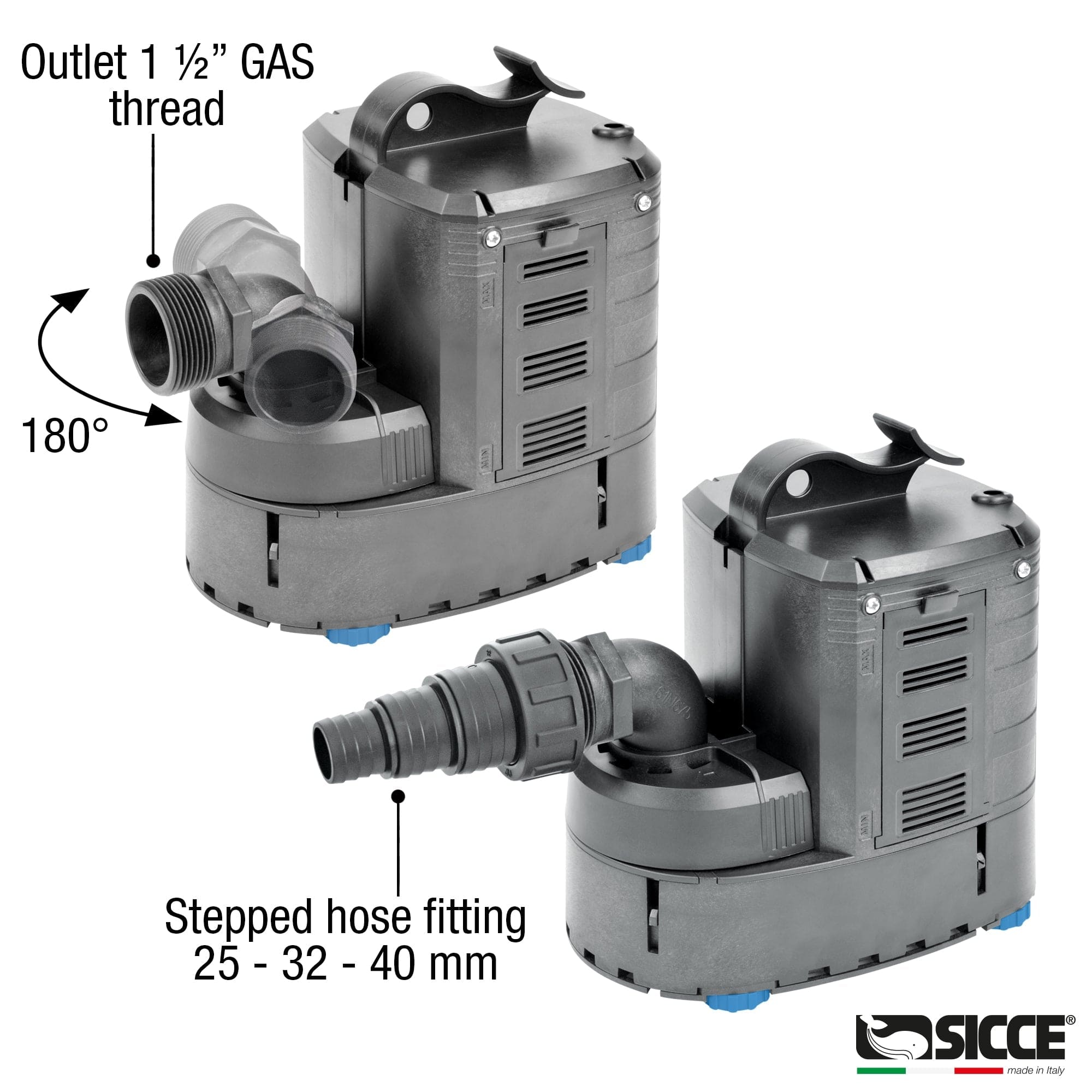

Rotatable Outlet, Stepped Hose Fittings
The outlet rotates to direct discharge in the required direction, and stepped hose barbs accommodate multiple common hose diameters without additional adapters.

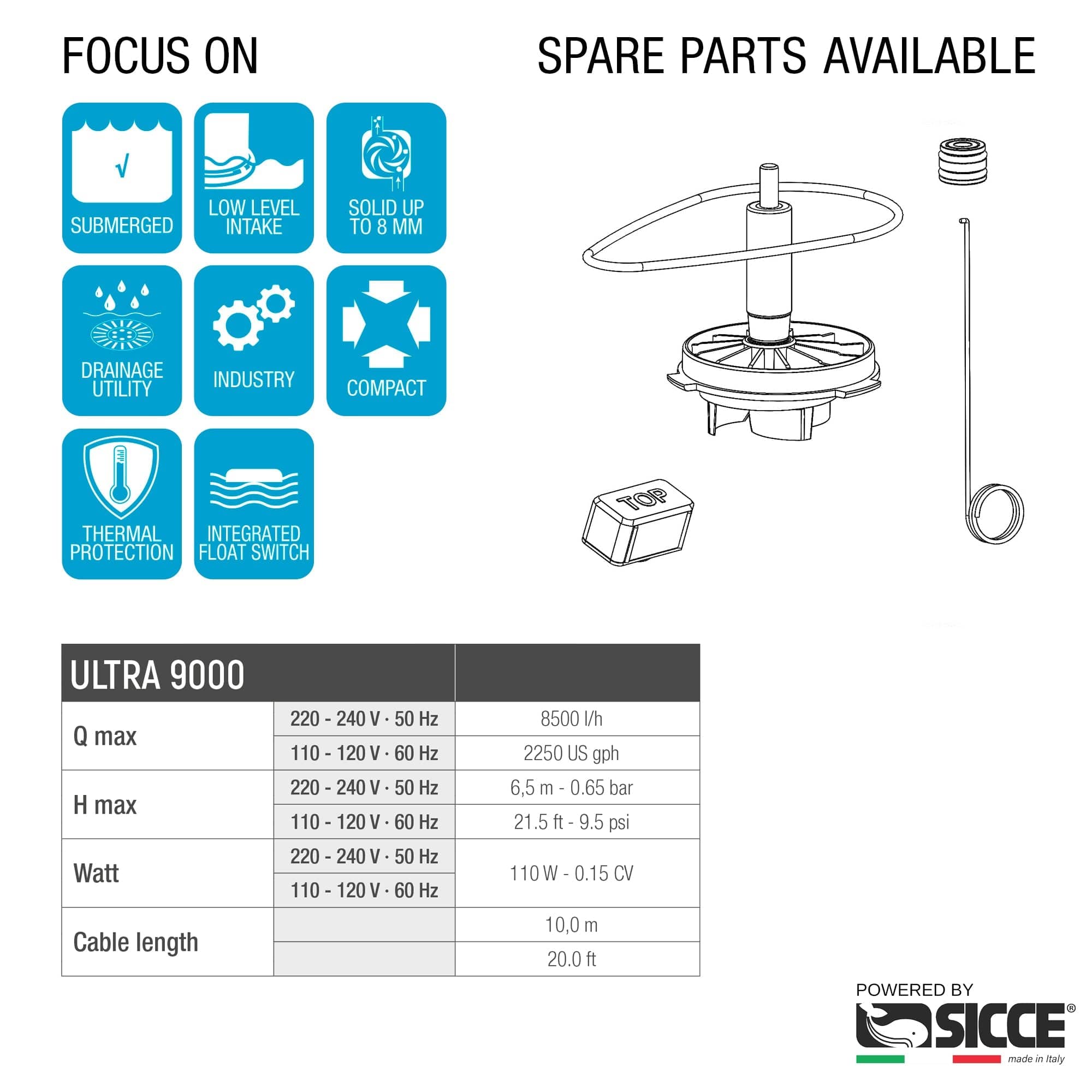

Specs and Spare Parts Reference
A combined specifications chart and spare parts illustration provides a quick reference for performance figures and the serviceable components available for the ULTRA 9000.
5-Year Warranty, Retail Packaging
The retail box calls out Sicce's 5-year guarantee — an unusually long coverage period for a utility pump in this output class.

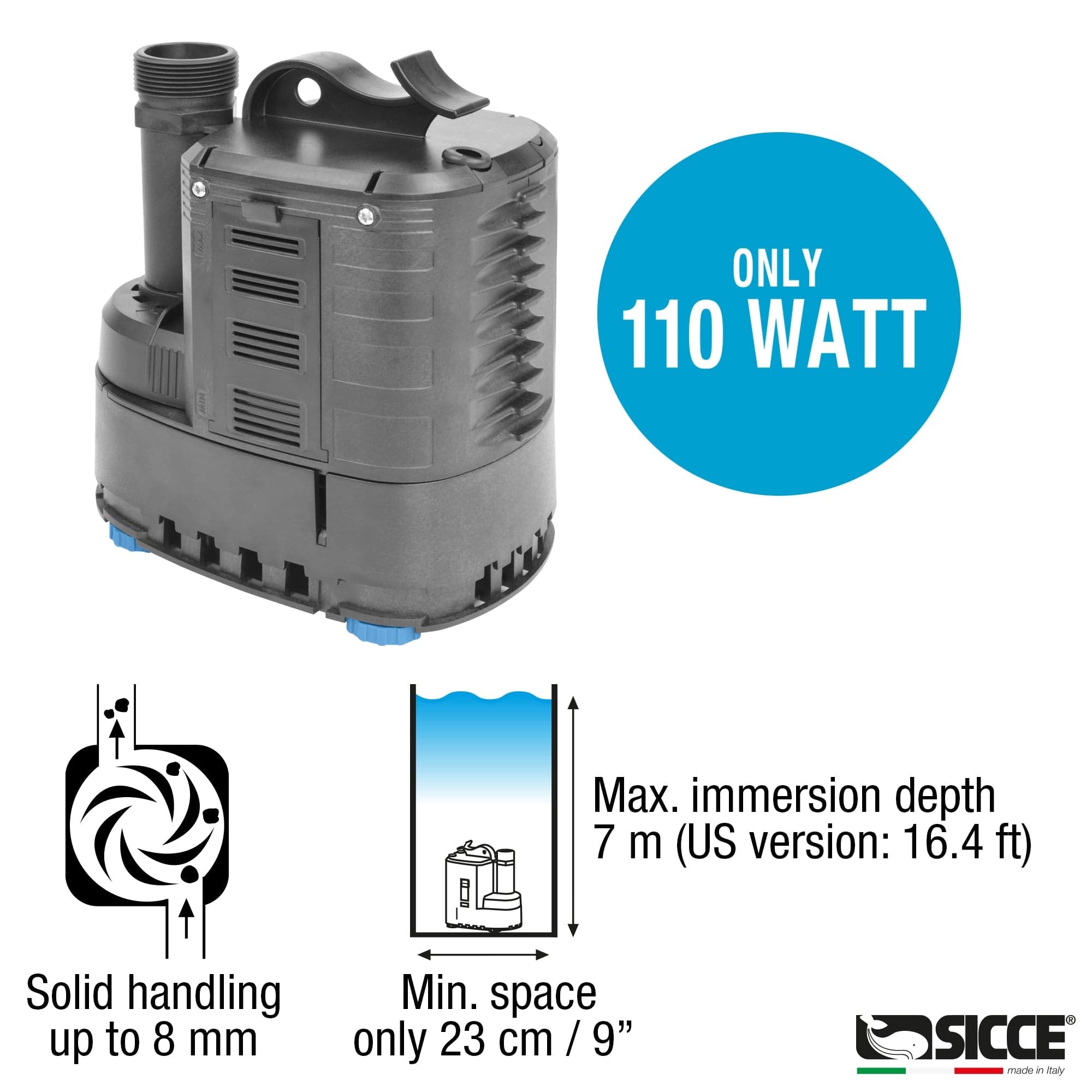

110W Power Consumption Highlighted
Key performance figures are called out alongside the 110W power draw, underscoring the pump's efficiency relative to its 2,245 gph output capacity.

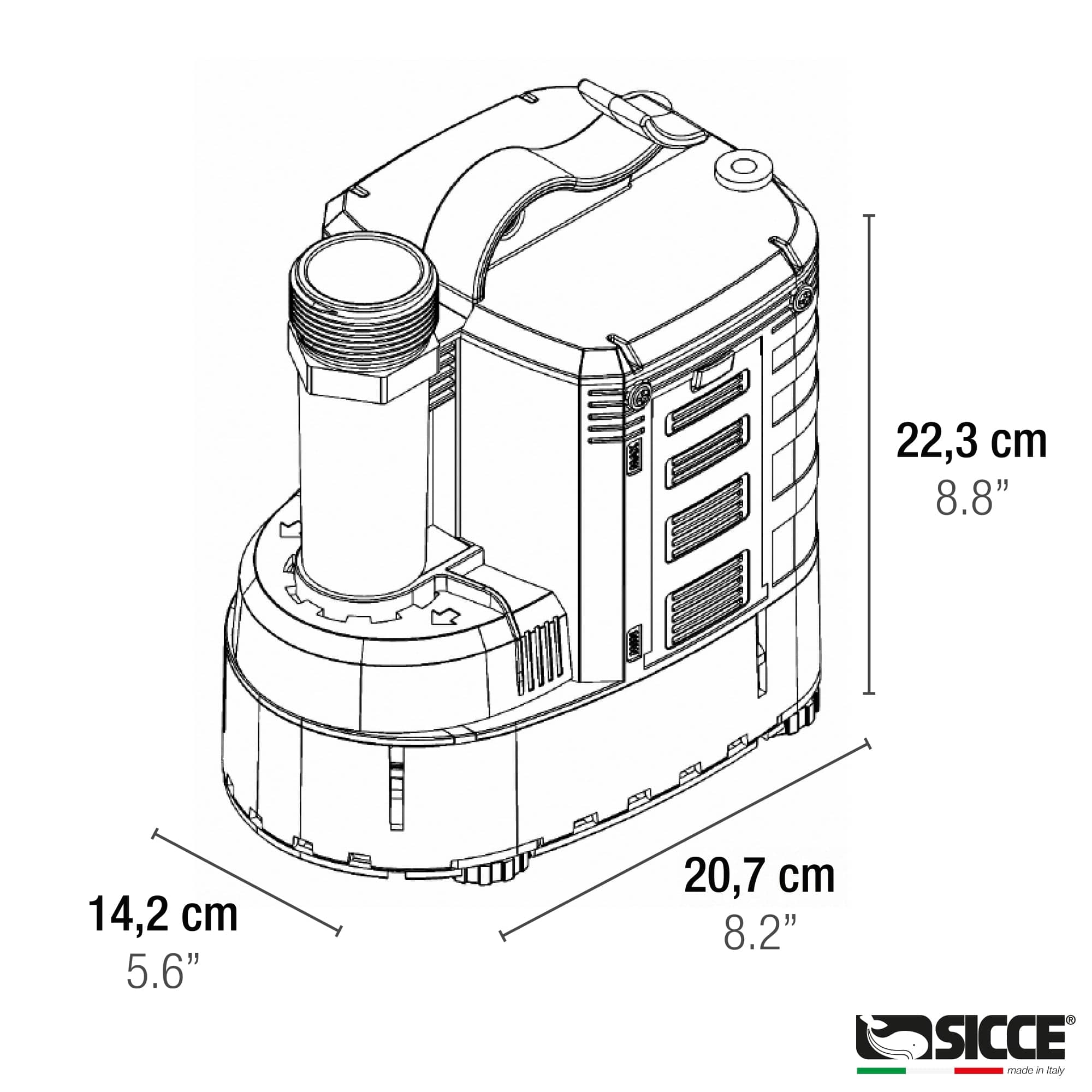

Dimensioned Technical Drawing
A fully dimensioned engineering drawing provides the external measurements needed to confirm whether the ULTRA 9000 fits the intended installation space.
Multiple Use-Case Applications
A lifestyle image shows the ULTRA 9000 deployed across several scenarios — including pond management and sump drainage — reflecting its intended versatility as a general utility pump.
Specifications
ULTRA 9000
- Power
- 110 W (0.15 CV)
- Maximum Flow Rate
- 8,500 l/h (2,250 US gph)
- Maximum Head
- 6.5 m (0.65 bar) / 21.5 ft (9.5 psi)
- Housing Material
- ABS + GF
- Protection Class
- IPX8
- Max. Immersion Depth
- 7 m (US: 16.4 ft)
- Solid Handling
- Up to 8 mm
- Minimum Drain Depth
- 5 mm
- Cable Length
- 10.0 m (20.0 ft)
- Area of Application
- Indoor / Outdoor
