Orbit 4 Cross-Flow Pump - AquaIllumination

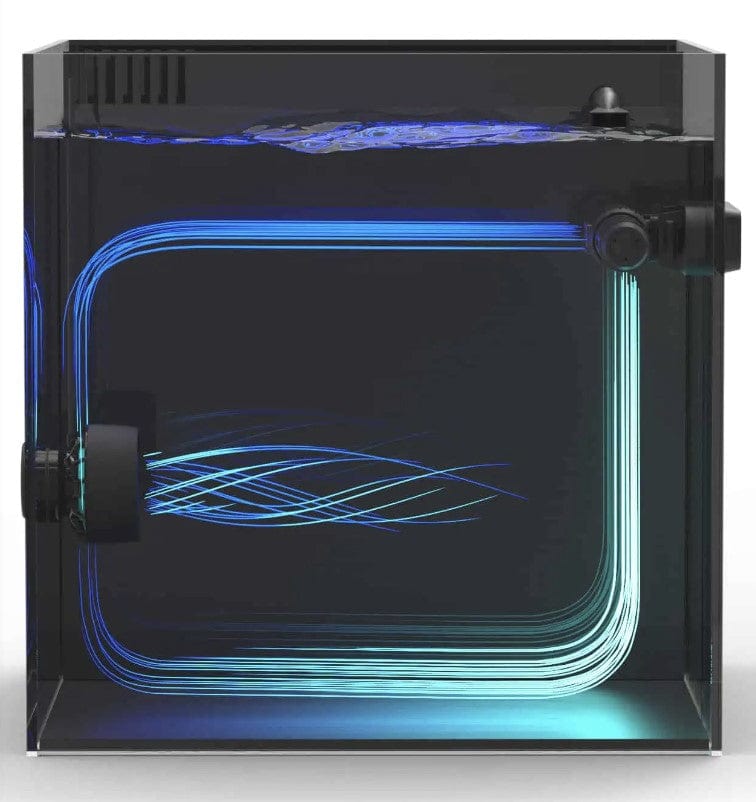

The Orbit 4 approaches water movement differently from a standard powerhead or propeller pump. Rather than projecting a focused jet of flow, it circulates water in a broad cross-flow pattern that tracks along the length of the tank — a closer analog to the tidal sweep experienced on shallow ocean reefs than the point-source blasts typical of directional pumps. This style of movement is particularly effective at picking up settled detritus from the substrate and rockwork and pushing it into suspension where mechanical filtration can remove it, which matters in systems with heavy bioload or dense coral placement.

Four flow modes expand the pump's practical range. Constant mode delivers a steady, user-defined flow rate suited to target feeding or predictable coral orientation. Pulse mode alternates between high and low output at regular intervals, creating a rhythmic surge that many soft corals and LPS respond well to. Random mode introduces irregular timing to better approximate high-energy reef conditions. The fourth mode — Reverse — flips the impeller direction, which on its own produces a distinct flow character, but becomes more useful when a second Orbit pump is running in the opposite direction simultaneously. Pairing two units this way allows the flow to roll continuously across the tank rather than returning and stalling at the far end.

Control is handled through AI's myAI or Mobius apps on iOS or Android, which cover scheduling, mode programming, and intensity adjustment. Hobbyists already running Neptune Apex controllers can integrate the Orbit 4 into their existing automation through the MXM module and Apex Fusion, keeping all flow control centralized alongside other system parameters.

The Orbit 4 mounts magnetically to glass up to 0.79 inches (20mm) thick, keeping the driver integrated into the pump body for a clean installation. It runs on universal input voltage (100–240VAC), so no separate transformer is needed for international use. At 12.1 inches wide and under 2 inches deep, it fits along the back or side panel of most rimless and rimmed systems without dominating the aquascape. For tanks that already run Nero pumps for directional and chaotic flow, the Orbit 4 is a logical complement — adding the sustained cross-flow layer that propeller-style pumps are not optimized to provide.
