Name: K1-Nano Protein Skimmer - IceCap
Brand: IceCap
SKU: IC-K1-NN
Price: 98.16 USD
Availability: InStock

K1-Nano Protein Skimmer - IceCap

Protein Skimmers Skimmer Less Than 50 Gallons

UPC: 6920042885028

$98.16

90 Day Returns Reef Guard Covered Free Ground Shipping Cart qualifies with this item Expert Support We've got your back!

Goes well with:

Ships Today

Order in the next 8h 26m

to get your supplies on the way today.

You're in!

12am5am10am3pm

Cutoff 3:00 PM EST

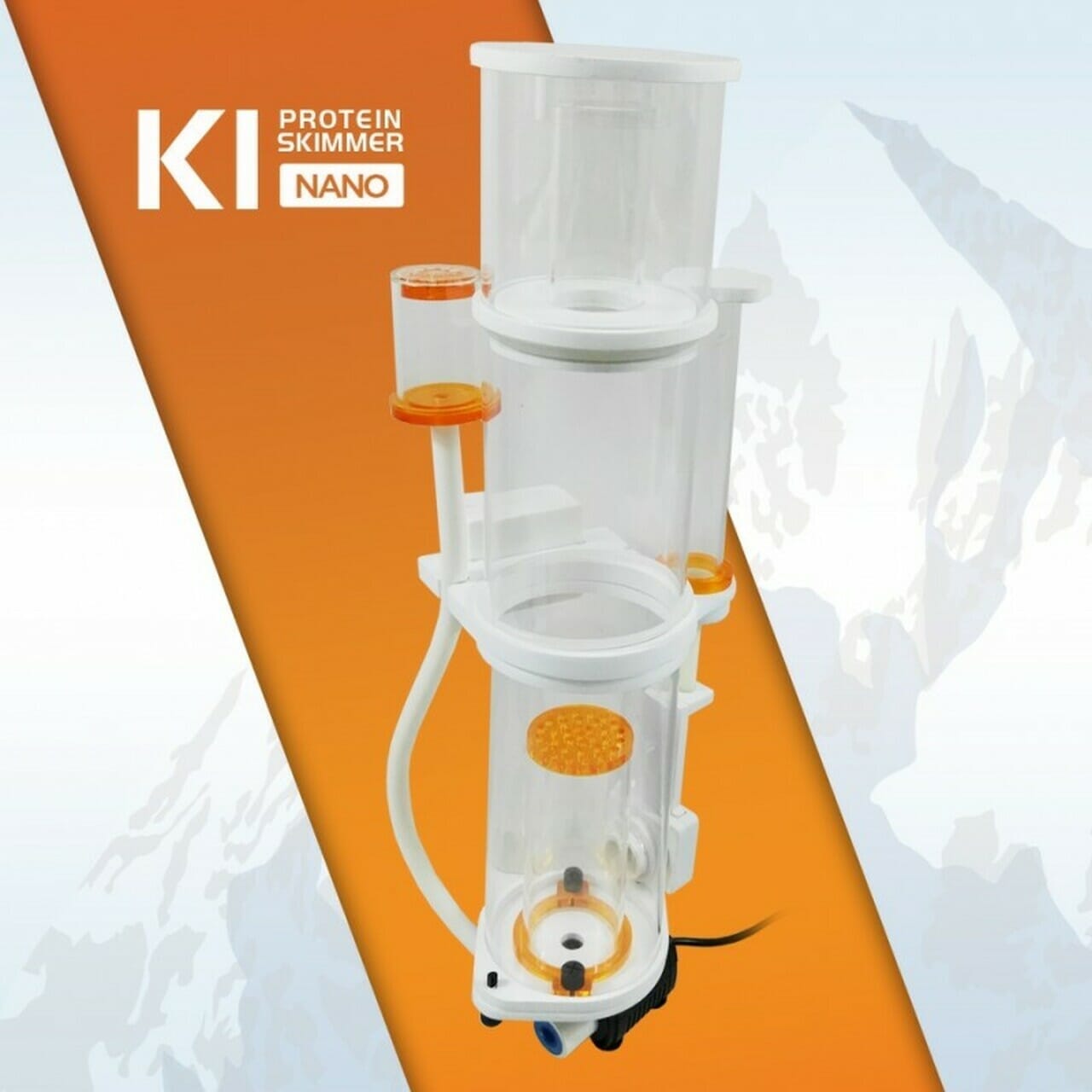

The IceCap K1-Nano is a compact in-sump protein skimmer designed for aquariums up to 30 gallons. It mounts via a magnetic bracket that attaches to sump walls up to half an inch thick, keeping its 2.75 by 3.2 inch footprint clear of the sump floor. Power comes from the DCair 200 pinwheel pump, drawing 5 watts and rated for 26 GPH water flow. The pipeless output valve allows underwater flow adjustment without splash, and the entire unit disassembles fully for straightforward cleaning. A practical choice for nano and small mixed-reef systems where sump space is limited.

The IceCap K1-Nano Protein Skimmer brings conventional foam fractionation to tanks where space constraints typically rule it out. Built from solid PVC and acrylic, the skimmer is designed specifically for in-sump use in systems up to 30 gallons, with a footprint small enough to fit in tight compartment configurations without sacrificing meaningful skimming performance.

At the core of the K1-Nano is the DCair 200 pinwheel pump, a 5-watt unit that draws 100 LPH of air and 26 GPH of water. The pinwheel design produces fine, consistent bubble columns that are further refined by an internal bubble dispersant chamber before reaching the collection cup. The turbulence-reducing body helps maintain stable foam production across a range of bioloads — light through heavy — corresponding to tank volumes from 10 to 30 gallons (excluding sump volume).

The pipeless output valve sets the K1-Nano apart from many skimmers in its class. Rather than routing outflow through an above-waterline pipe, water exits submerged and to the side of the body. This eliminates splash noise, reduces micro-bubbles returning to the display, and keeps overall height manageable at 13 inches total. Recommended sump water depth is 6 to 9 inches. Fine-tuning is handled directly at the submerged valve, making adjustments straightforward once the skimmer is dialed in.

Installation relies on a magnetic mount rated for surfaces up to half an inch thick, which positions the skimmer body against the sump wall rather than resting it on the sump floor. The magnet footprint with mount measures either 4.75 by 3 inches or 3.5 by 4 inches depending on orientation. Every component of the K1-Nano disassembles without tools for routine cleaning. The pump and skimmer body both carry a one-year warranty through CoralVue, valid for original purchasers in North America.

Overview

Compact Skimming. No Compromises.

The K1-Nano delivers reliable protein skimming in a footprint small enough for the tightest nano sumps. Here is what makes it work.

Magnetic Wall Mount
- Attaches to sump walls up to 1/2 inch thick
- Keeps skimmer body off the sump floor
- Two orientation options to suit different sump layouts
Pipeless Output Valve
- Outflow exits submerged and to the side of the body
- Eliminates splash noise and surface disruption
- Fine-tuning adjustment is made directly at the submerged valve
DCair 200 Pinwheel Pump
- 5-watt power draw for efficient operation
- Rated for 100 LPH air draw and 26 GPH water flow
- Quiet running with internal bubble dispersant chamber

Features

2.75 × 3.2 Inch Base Footprint
The dimensioned drawing confirms the K1-Nano body measures 2.75 by 3.2 inches at the base, making it compatible with narrow sump compartments where full-size skimmers cannot fit.
13-Inch Total Height, 2-Inch Body
The technical schematic shows the K1-Nano standing 13 inches tall with a 2-inch-diameter skimmer body, designed to operate in sump water depths between 6 and 9 inches.
