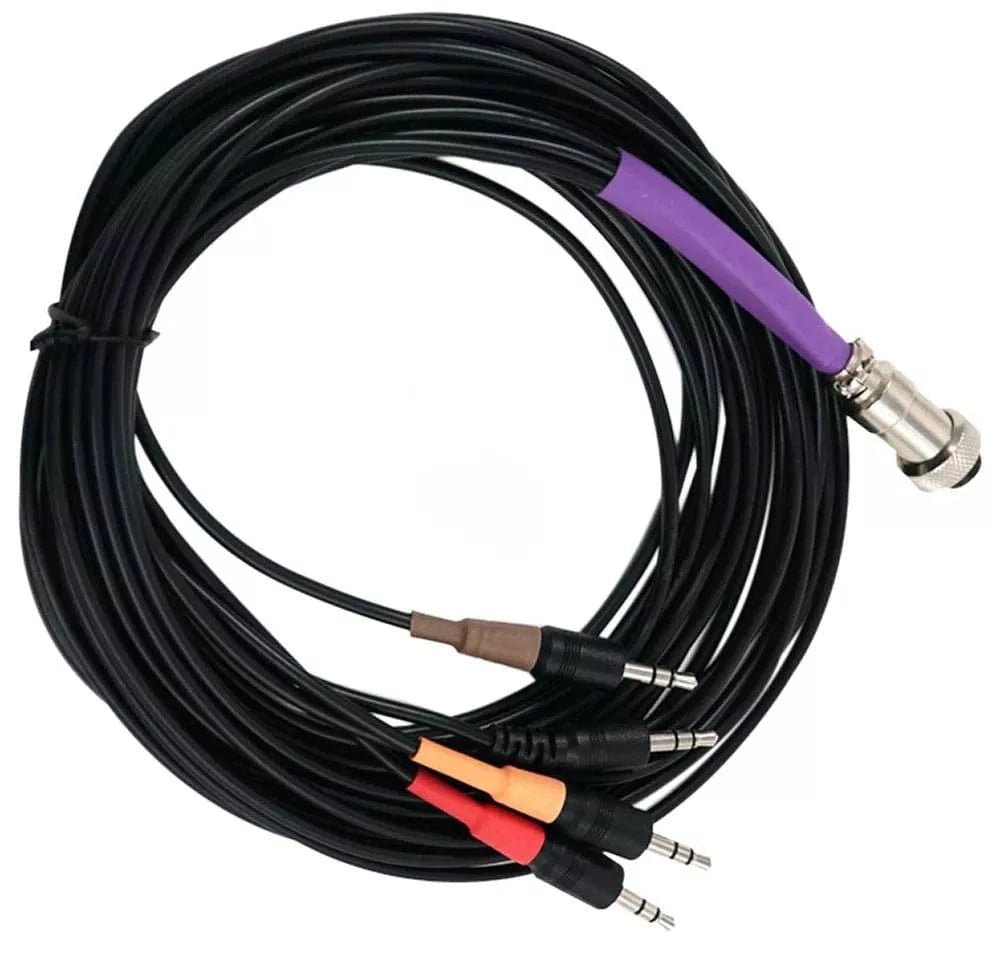

Not every controllable pump on the market accepts the WaveEngine's direct drive connection, but many of those same pumps do expose a 0-10V variable speed input. The WaveEngine 0-10V Quad Cable bridges that gap, adding four independent 0-10V output channels so the WaveEngine can orchestrate pumps it would otherwise be unable to reach. The result is a genuinely unified flow system rather than a patchwork of separate controllers each running on its own schedule.
Compatibility is deliberately wide. The 0-10V input pathway covers pumps from Reef Octopus (VarioS and Octo Pulse lines), Abyzz (A100 through A1200 and AFC 400), IceCap Gyre 2K and 4K, CoralBox QP-9+ and 16+, Jebao WP/RP/PP/FS/SW series, Tunze Turbelle Nanostreams, Waveline DC 6000 and 10000II, and others. If you run a mixed-brand system — a VorTech at one end of the tank and a Reef Octopus Octo Pulse at the other, for instance — all pumps can run simultaneously, opposite each other, or in entirely different patterns without complicated per-pump coding.
Beyond compatibility, the cable inherits the full WaveEngine feature set for each connected pump: native flow modes and presets without intricate programming, reverse pump drive for pumps like the Octo Pulse 4 that change flow character in reverse, cross-engine synchronization when multiple WaveEngines are in use, and real-time power and RPM monitoring with text or email alerts if a pump is blocked, disconnected, or degrading. Cloud and local app control (iOS and Android) remain fully available. An optional battery backup module (sold separately) can shift connected pumps into low-power circulation patterns automatically during an outage.
On the practical side, four pump outputs running off a single power supply means the power bricks, individual controllers, and external wireless modules that typically accumulate around a multi-pump system can largely be eliminated. Installation is straightforward: remove the existing power supplies and per-pump controllers, connect the WaveEngine via this cable, and configure from the app. If your setup includes pumps that appear in the 0-10V input column of the Hydros compatibility chart, this cable is the correct purchase to bring them under WaveEngine control.
Overview
One Cable. Four Pumps.
The 0-10V Quad Cable extends WaveEngine control to pumps that require variable-speed input rather than direct drive, unifying mixed-brand flow systems under a single interface.
Broad Pump Compatibility
- Supports 0-10V input pumps from Reef Octopus, Abyzz, Jebao, IceCap, Tunze, CoralBox, Waveline, and others
- Mix pump brands across the same tank while running them in synchronized or independent patterns
- Works alongside direct-drive and RF-controlled pumps already connected to the WaveEngine
Full WaveEngine Feature Access
- Native flow modes and presets available without per-pump coding on 0-10V connected models
- Reverse pump drive supported for compatible pumps, expanding available flow patterns
- Real-time power and RPM monitoring with text or email alerts for blocked or degraded pumps
Simplified Infrastructure
- Four independent 0-10V outputs powered from a single WaveEngine power supply
- Eliminates individual power bricks, controllers, and external wireless modules
- Cloud and local app control (iOS and Android) with optional battery backup support
Specifications
WAVEENGINE 0-10V QUAD CABLE
- Output Channels
- 4 independent 0-10V outputs
- Compatible Controllers
- Hydros WaveEngine
- Third-Party Controller Integration
- Neptune Systems Apex, Reef Angel, GHL Profilux, others via 0-10V control port
- App Compatibility
- iOS and Android
- Cloud Platform
- Amazon Web Services (AWS) IoT
- Battery Backup
- Optional, sold separately
- Enclosure
- Splash-proof with industrial connectors
0-10V COMPATIBLE PUMPS (PARTIAL)
- IceCap
- Gyre 2K, 4K
- Reef Octopus
- VarioS-2, VarioS-4, VarioS-6, VarioS-8, Octo Pulse 2, Octo Pulse 4
- Abyzz
- A100, A200, A400, A1200, AFC 400
- CoralBox
- QP-9+, QP-16+
- Jebao
- WP, RP, PP, FS, SW Series
- Tunze Turbelle
- Nanostreams
- Waveline
- DC 6000, DC 10000II
