Maintaining water circulation during a power outage is one of the most critical safeguards in a reef system. The Hydros IceCap Battery Backup Cable Kit provides the correct wiring interface to connect a HYDROS WaveEngine to the IceCap Battery Backup V3, allowing the battery to supply power to the pump automatically when grid power is interrupted. Without the proper cable interface, the WaveEngine and the IceCap battery cannot communicate power correctly — this kit solves that compatibility gap.

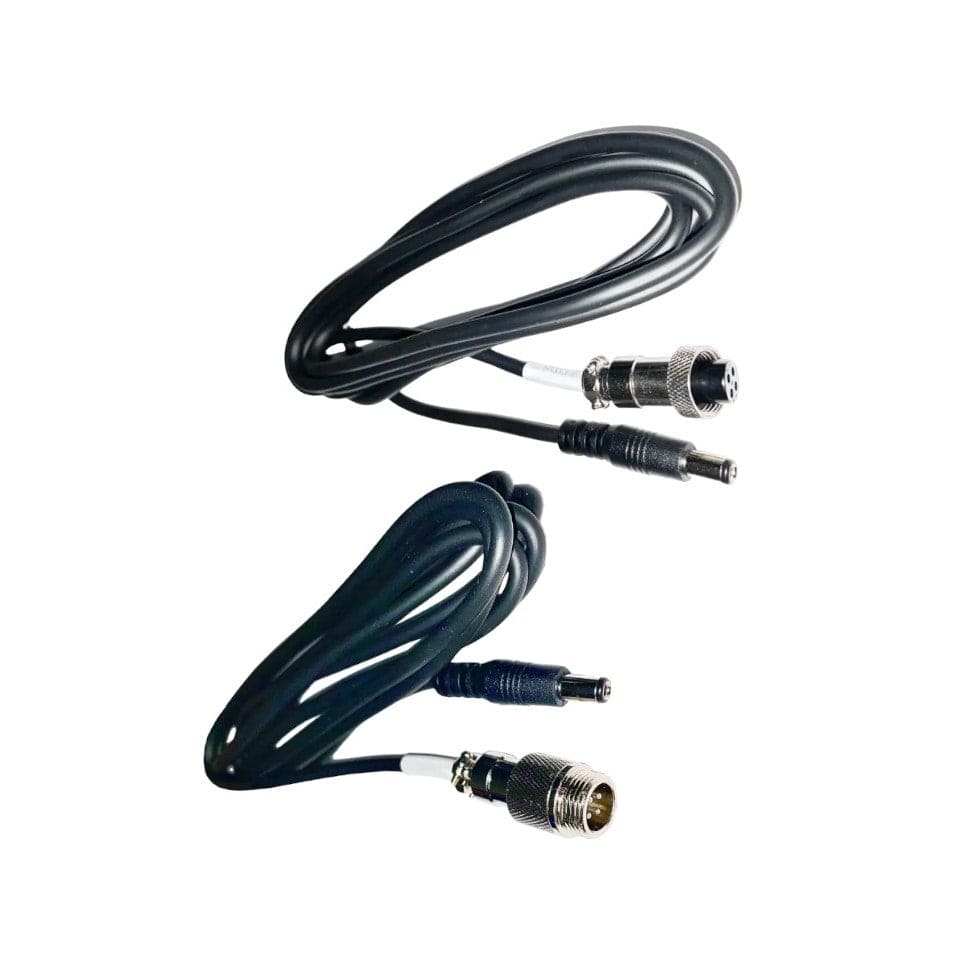

The kit includes two purpose-made cables with 4-pin GX12 connectors. The first cable uses a female GX12 connector to link the WaveEngine's power supply to the 'Input: Pump Power Supply' port on the battery. The second cable uses a male GX12 connector to run from the battery's 'Output: Pump' port back to the WaveEngine's power port. The IceCap Battery Backup V3's own smaller power supply then connects to the 'Input: Charger' port separately to keep the battery charged and ready.
Installation follows a logical three-step sequence: connect the power supply to the battery input, connect the battery output to the WaveEngine, and plug in the charger. No splicing, soldering, or custom wiring is required. The connectors are keyed to reduce the chance of incorrect insertion.
This kit is compatible exclusively with the IceCap Battery Backup V3. If you are running dual IceCap batteries, a Y-cable configuration is also supported — refer to the wiring diagrams for both single and dual battery setups. Confirm your IceCap battery version before purchasing, as other versions of the IceCap Battery Backup are not supported.
Overview
Flow Protection. Plug and Play.
A straightforward cable interface that keeps your HYDROS WaveEngine running through power outages via the IceCap Battery Backup V3.
Correct Connectors
- Female 4-pin GX12 connector links WaveEngine power supply to battery input
- Male 4-pin GX12 connector routes battery output back to WaveEngine
- Keyed connectors reduce risk of incorrect insertion
Straightforward Setup
- Three-step wiring sequence with no splicing or soldering required
- Clearly defined input, output, and charger port assignments
- Supports single and dual IceCap battery configurations
Purpose-Built Compatibility
- Designed specifically for the IceCap Battery Backup V3
- Not compatible with other IceCap battery backup versions
- Pairs directly with the HYDROS WaveEngine power port
Features

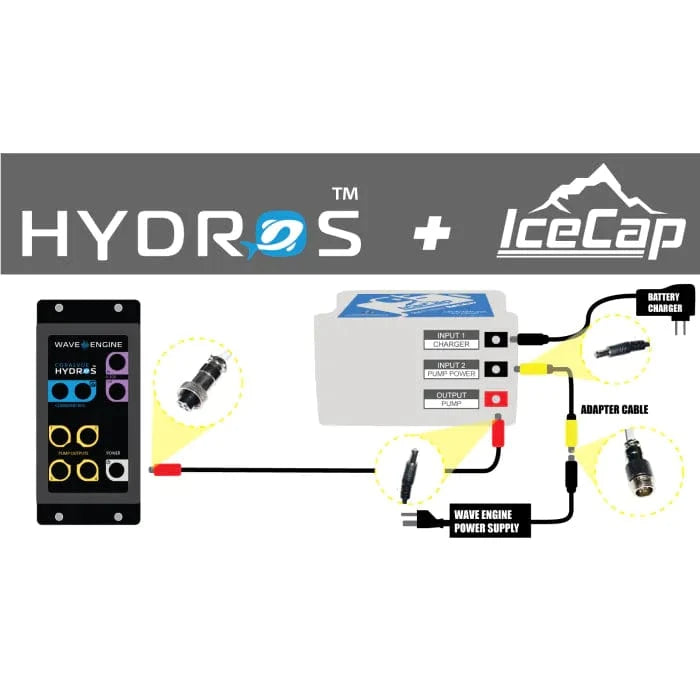

WaveEngine to Battery Connection
This diagram illustrates how the cable kit routes power from the HYDROS WaveEngine power supply through the IceCap Battery Backup V3 and back to the WaveEngine. It shows the role of each cable and the corresponding port on the battery unit.

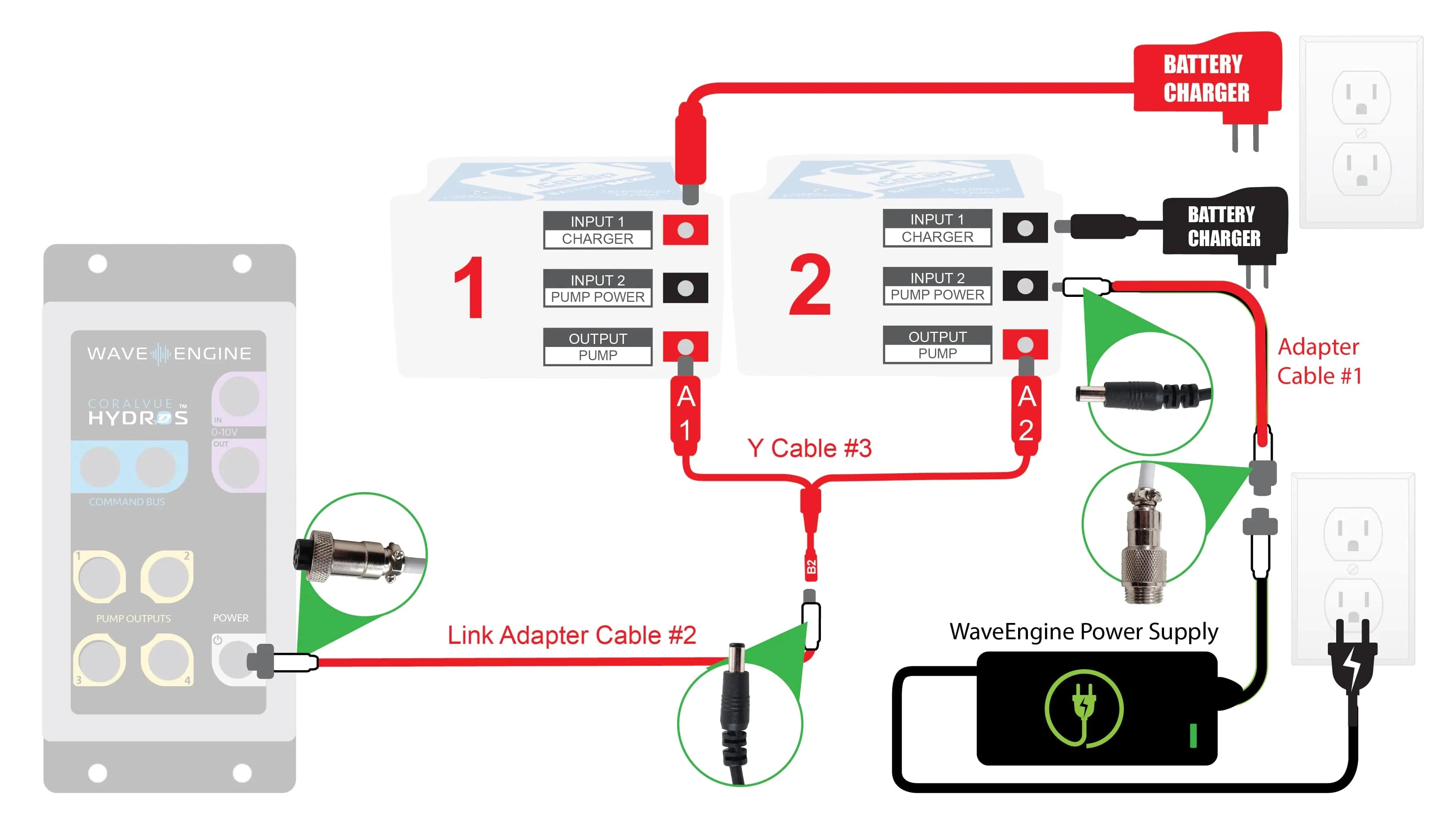

Dual Battery Y-Cable Wiring
This labeled wiring diagram shows how to configure two IceCap Battery Backup V3 units in parallel using a Y-cable setup. Port labels on both batteries are identified to clarify input, output, and charger connections across the dual-battery arrangement.

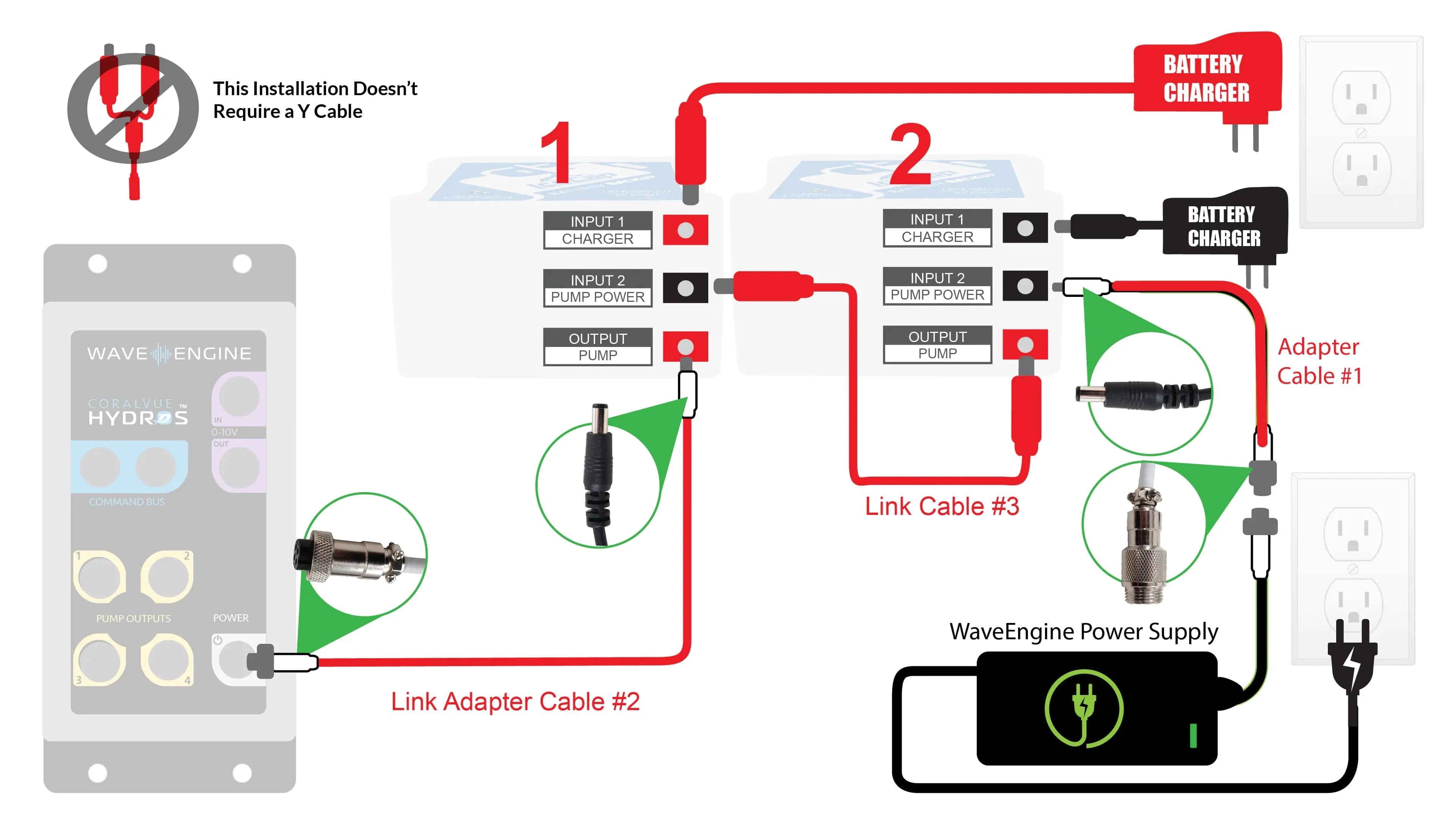

Dual Battery Without Y-Cable
This diagram covers the dual IceCap battery configuration when a Y-cable is not used, labeling each port connection for both battery units. It provides an alternative wiring path for hobbyists running two batteries in their backup setup.
Specifications
HYDROS ICECAP BATTERY BACKUP CABLE KIT
- Connector Type
- 4-pin GX12 (female and male)
- Compatible Battery
- IceCap Battery Backup V3 only
- Compatible Pump Controller
- HYDROS WaveEngine
- Supported Configurations
- Single battery, dual battery with Y-cable, dual battery without Y-cable
